Item #: AP11614

Price: $1,899.95

Temporarily out of stock; call for availability.

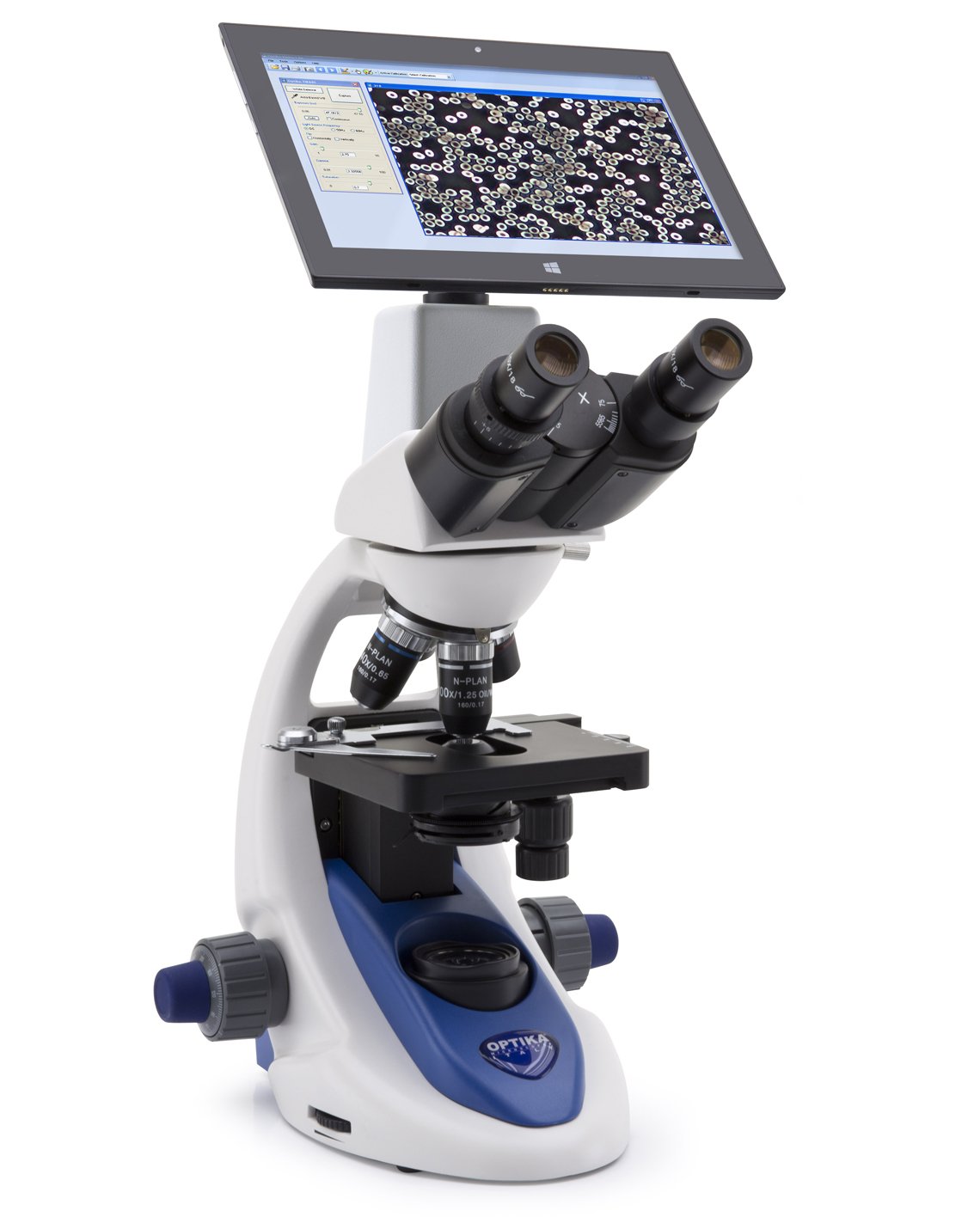

Digital binocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination.

See more product details

Product Details

Digital binocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. The 3.1 MP CMOS camera ensures excellent colour reproduction and is connected to a Windows tablet PC with vivid color graphic display for unparalleled comfort and performance. The tablet represents a 2-in-1 solution as it can be disconnected and used as a real PC, being Windows based, with powerful Intel processor and large touch screen of 10.1” for fast, responsive and smooth control.

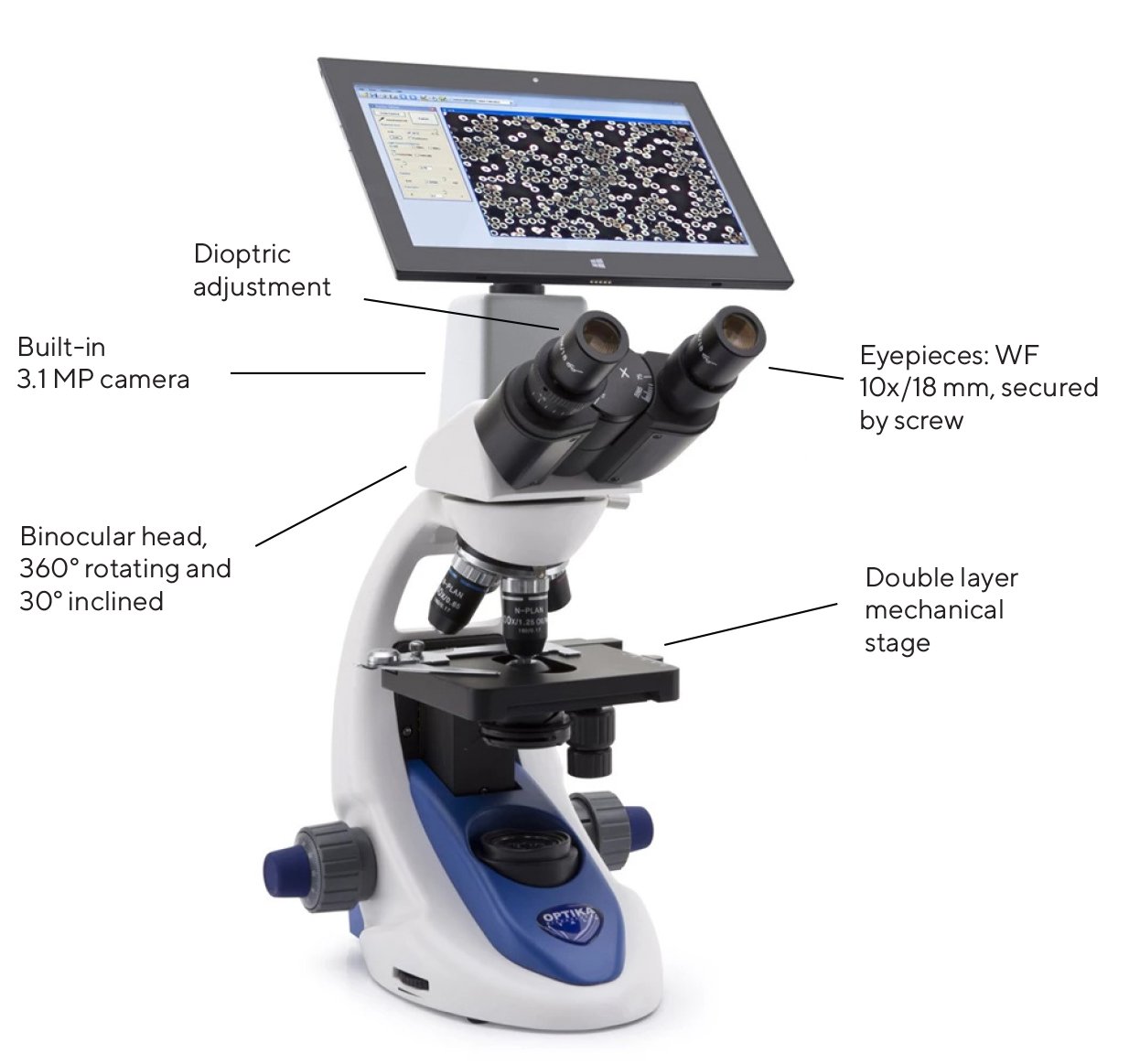

Specifications

  • Observation mode: Brightfield.
  • Head: Binocular, 360° rotating and 30° inclined.
  • Interpupillary distance from 48 to 75 mm; dioptric adjustment on left eyepiece.
  • Built-in 3.1 MP camera.
  • Eyepieces: WF 10x/18 mm, secured by screw.
  • Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
  • Objectives:
    • N-PLAN objective 4x/0.10
    • N-PLAN objective 10x/0.25
    • N-PLAN objective 40x/0.65
    • N-PLAN objective 100x/1.25 (Oil/Water).
    • All with anti-fungus treatment.
  • Specimen stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range.
    • Vernier scale on the two axes, accuracy: 0.1mm.
  • Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
  • Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
  • Illumination: X-LED² with white 3 W LED and light intensity control.
  • Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply.
  • Color temperature: 6,300 K.
