New

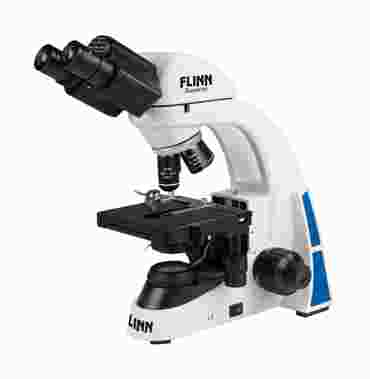

Flinn Advanced Superior Compound Binocular Microscope, 4X, 10X, 40X, 100X

Item #: MS1127
alternative codes
Alternative Product Codes: 592826,S72614

Price: $1,275.75

In Stock.

The Flinn Advanced Superior Compound Microscopes are among the finest in optical quality with WF10X Plan eyepieces, Plan achromatic objectives, coaxial focus knobs, a graduated mechanical stage, adjustable LED rheostat, iris diaphragm, and 1.25 N.A. Abbe condenser.

See more product details

Product Details

The Flinn Advanced Superior Compound Binocular Microscope delivers exceptional optical clarity and precision for demanding science programs. WF10X Plan eyepieces and Plan achromatic objectives keep the entire field of view sharp and color-corrected, while coaxial coarse and fine focus knobs allow smooth, accurate adjustments. The large graduated mechanical stage offers measured positioning across all magnifications. The adjustable LED rheostat, iris diaphragm, and 1.25 N.A. Abbe condenser work together to produce excellent contrast and resolution without overheating live specimens. The Siedentopf-style binocular head reduces eye fatigue during extended lab use, and the four included Plan objectives—4X, 10X, 40X, and 100X oil-immersion—provide a total magnification range of 40X–1000X. The microscope includes a 6V/2A power supply and dust cover and is backed by a six-year warranty.

Specifications

Objective Lenses: 4 (4X, 10X, 40X, 100X), Total Magnification: 40X–1000X, Optical System: Binocular, Stage Type: Mechanical Stage, Nosepiece Type: High-quality 4-position, Focus Type: Coarse and Fine, Power Source: Corded, Warranty: 6-year, Achromatic Objectives: Yes, Dust Cover Included: Yes, Eyepiece Magnification: 10X, Iris Diaphragm: Yes, LED Placement: Bottom, Observation Tube: 45° Inclined, Rheostat Control: Yes, Siedentopf Ocular Adjustment: Yes, Stage Size: 140×132 mm, Stage Thickness Capacity: 25 mm, Working Distance: 4X 15 mm, 10X 8.57 mm, 40X 0.38 mm, 100X 0.09 mm.

Objectie Lenses   4 (4X, 10X, 40X, 100X)
Total Mag Power   40X-1000X
Optical System   Binocular
Stage Type   Mechanical Stage
Focus Type   Coarse and Fine
