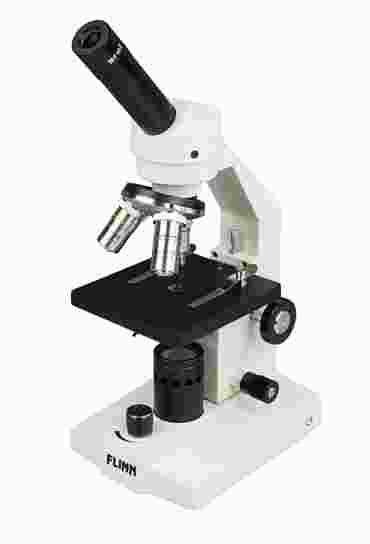

Flinn Scientific Standard Compound Microscopes are built for durability, precision, and classroom versatility. Equipped with achromatic objectives ranging from 4X to 100X and paired with a 10X eyepiece, these models provide total magnification from 40X to 1000X to support both introductory and advanced biology studies. Options include stage clips or a mechanical stage for precise slide control, and select models feature dual heads for demonstration and collaborative learning. Standard features include an iris diaphragm, bright LED bottom illumination, and a 45° inclined observation tube for comfortable viewing. Sturdy stages sized for common slides and corded or rechargeable battery operation add convenience for student labs. Each microscope includes a dust cover for protection, making this series a reliable choice for hands-on biology instruction.
Specifications
Objective Lenses: 3 (4X, 10X, 40X), Total Mag Power: 40X–400X, Optical System: Monocular, Stage Type: Stage Clips, Nosepiece Type: Revolving/Triple, Focus Type: Coarse and Fine, Power Source: Corded or rechargeable battery, Achromatic Objectives: Yes, Dust Cover: Yes, Eyepiece Mag Power: 10X, Iris Diaphragm: Yes, LED Placement: Bottom, Observation Tube: 45° Inclined, Rheostat Control: Yes, Stage Size: 110 × 120 mm, Stage Up To Thickness: 20 mm, Working Distance: 4X 25 mm, 10X 6.3 mm, 40X 0.45 mm
