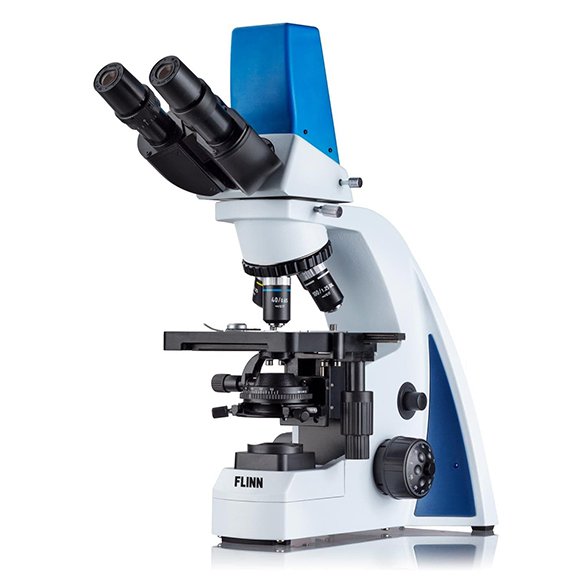

Flinn Infinity Digital Microscope, 5 MP Camera

Product Details

The Flinn Infinity Digital Microscope is designed for advanced life science research. The professional biological microscope includes built-in 5.0 mega digital camera with advanced software. The advanced microscopy features a digital Siedentopf binocular viewing head with 3rd tube as built-in digital camera, body frame, reversed revolving quadruple nosepiece, four infinity achromatic optics objectives, large double layer mechanical stage with scale, brighter & whiter illumination due to 3W LED variable intensity light and advanced 0.9 NA condenser for better control of the light path. It offers eight level magnifications from 40X-2000X.

Features:

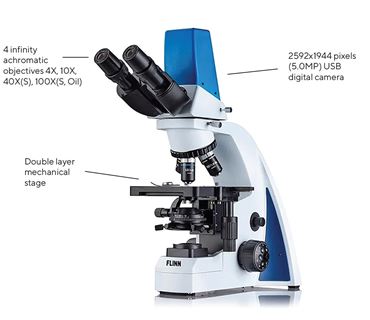

• Built-in 2592x1944 pixels (5.0MP) USB digital camera with advanced software applications
• Siedentopf binocular digital viewing head with adjustable interpupillary distance
• 4 infinity achromatic objectives 4X, 10X, 40X(S), 100X(S, Oil)
• Double layer mechanical stage with NA 0.9/0.25 Abbe condenser with a flip-top upper lens
• Variable intensity transmitted 3W LED lamp and coaxial coarse and fine focus adjustment on both sides

Specifications:

• Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X

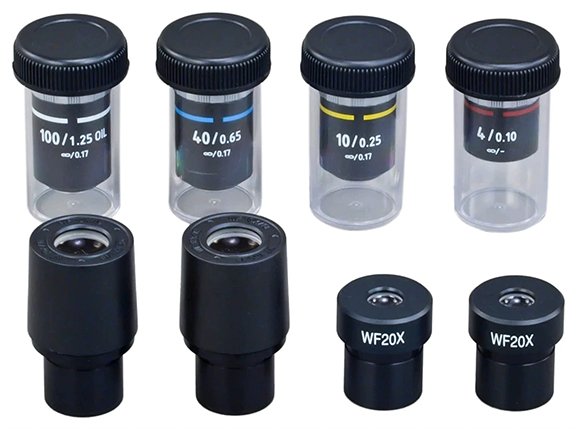

• Eyepieces: wide field WF10X/18 and WF20X
• Objectives: infinity achromatic 4X/0.10 ?/-, 10X/0.25 ?/0.17, 40X/0.65 ?/0.17 (spring), 100X/1.25 ?/0.17 (spring, oil)

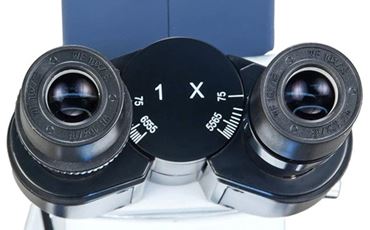

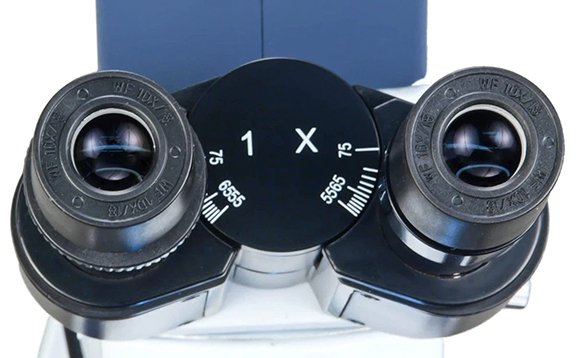

• Viewing head: binocular digital Siedentopf 30°Inclined 360°rotatable
• Interpupillary: adjustment 2-3/16"~2-15/16" (55mm-75mm)
• Diopter: adjustable on left eyepiece tube
• Nosepiece: reversed revolving quadruple nosepiece
• A lever to switch between beam spilt for photo part and 100% to eyepieces when camera is not in use

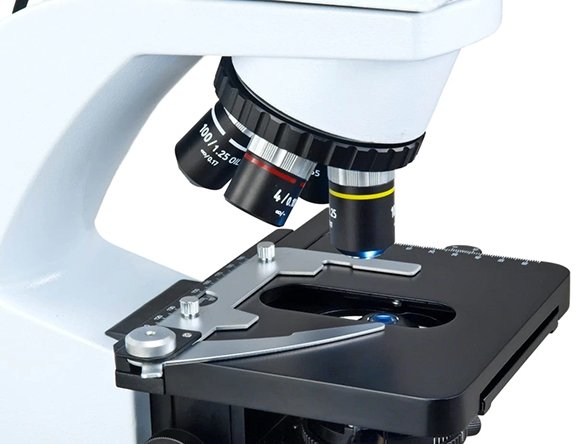

• Stage: Double layer X-Y mechanical stage with scales, size 140mmx110mm (5-1/2"x4-1/4"), translation range 78mmx46mm (3"x1-13/16")
• A specially designed back slot on the microscope stand for easy hand holding and carrying
• Illumination: transmitted, 3W LED lamp, intensity adjustable
• Focus: coaxial coarse and fine focus knobs on both sides with tension control
• Stage upward stopper protects objective and slides
• Condenser: NA0.9/0.25 condenser with iris aperture diaphragm, condenser center adjustable, top lens can be swing out of the light path
• Color filter: green, 45mm in diameter, for trasmitted light
• Power supply: AC 110V, 50/60Hz (US and Canada) (220V version available, contact seller)

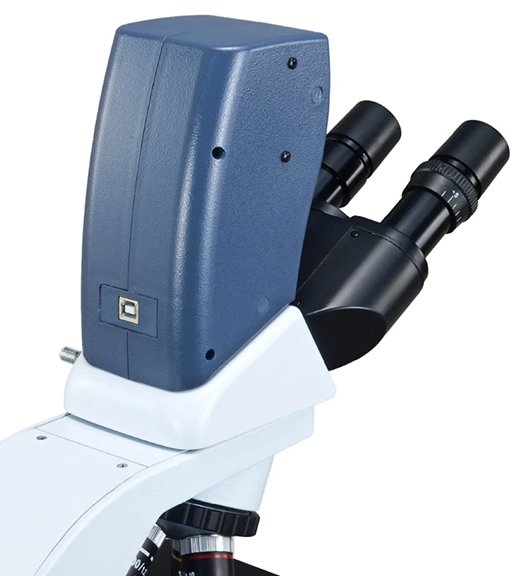

• Built-in digital camera:
  - Imaging device: 5.0 mega pixels, 1/2.5" CMOS
  - Effective pixels: 2592x1944
  - Maximum still image resolution: 2592x1944 pixels
  - Frame rate: 2.5 frames per second at 2592x1944, 10 frames per second at 1024x768

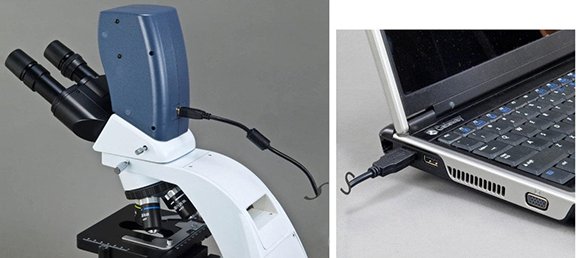

  - Interface: USB2.0 ( 480MB/ second)
  - SNR: >40dB
  - Software compatible with Windows
  - Camera compatible with Windows & Mac (using third-party camera app)
• Dimension: 42cmx20cmx47cm (16-1/2"x7-7/8"x18-1/4")
• Net weight: 18 lbs (8.3 kg)
• Shipping package: 22 lbs (10 kg)
