Item #: TC1612

Price: $99.00

In Stock.

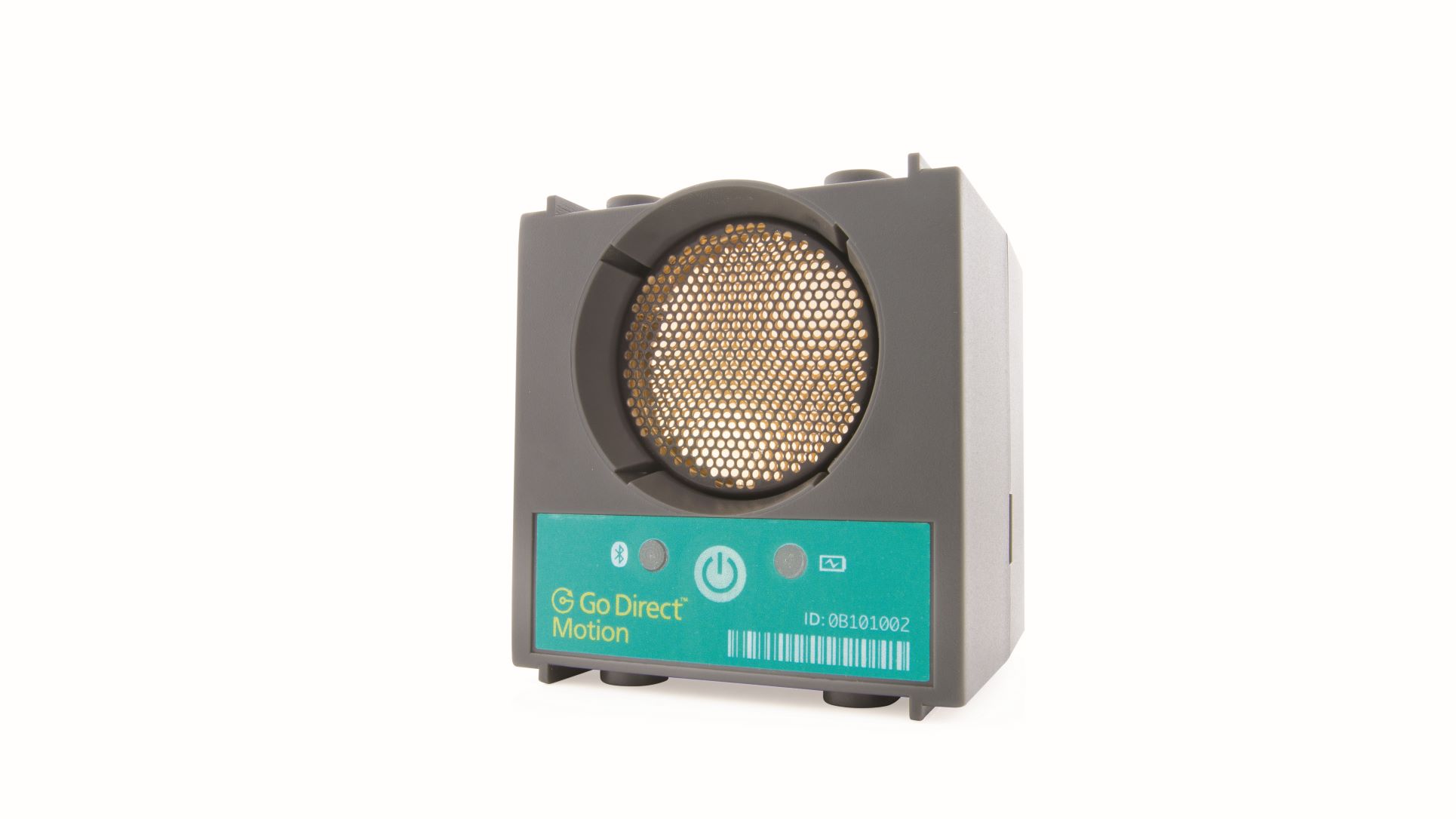

Go Direct™ Motion Detector accurately measures distance to an object using ultrasonic pulses and includes built-in temperature compensation. Connects wirelessly via Bluetooth® or wired via USB.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

The Go Direct Motion Detector accurately tracks objects as close as 15 cm and as far away as 2.5 m. Built-in temperature compensation automatically adjusts for the difference in the speed of sound in cold and warm locations. Unique design protects the sensor from falling objects during simple harmonic motion or free fall experiments. The Go Direct Motion Detector can be used in a variety of experiments such as studying position, velocity, and acceleration of carts when mounted on a track, matching graphs created in Graphical Analysis 4 software, analyzing the effects of air resistance on falling coffee filters, and investigating simple harmonic motion by monitoring a mass on a spring.

Go Direct™ sensors connect directly to your mobile device, Chromebook, or computer using the free Graphical Analysis™ 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth, allowing you to choose the solution best for your classroom or laboratory.

The Go Direct robust rechargeable battery offers long battery life and provides always-ready operation. Monitor battery life directly from the free Graphical Analysis™ 4 app. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Specifications

Maximum data collection rate: 30 samples/s
Distances measured from 15 cm to 2.5 m
Temperature compensated
¼-20 threaded hole for mounting on motion detector clamp
1.5 m USB cable
Connections: Bluetooth wireless or USB wired
