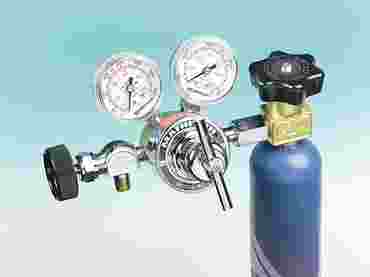

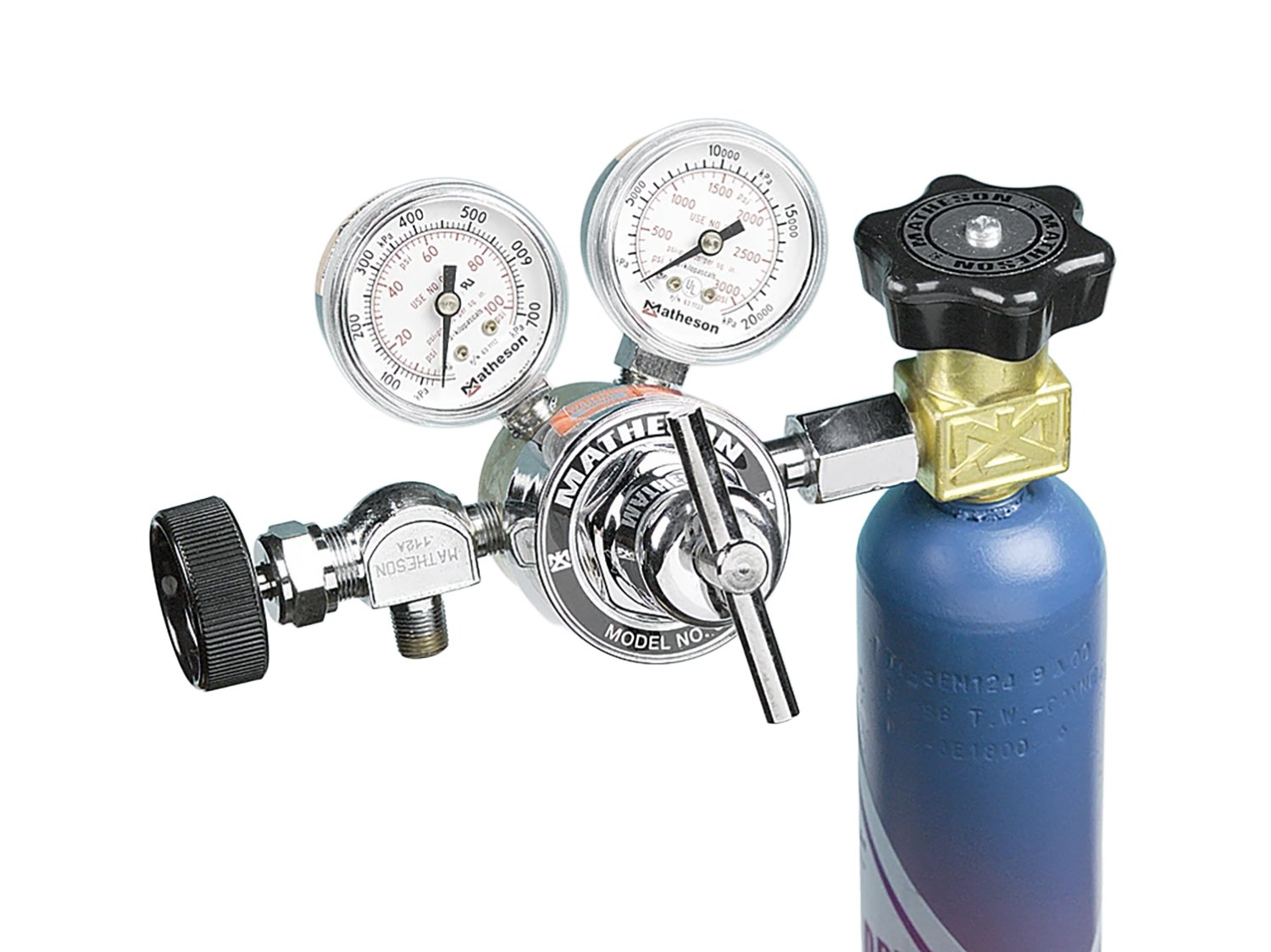

The lecture bottle regulator provides precise control of both delivery pressure and the internal bottle pressure. This compact, brass-bodied unit includes a swivel inlet, ⅛" NPT male outlet, and requires only a wrench for installation. For use with nonrefillable lecture bottles.
This regulator features a CGA180 inlet, right-hand (standard) threads, ⅛" NPT female porting, and a 2-high/2-low port configuration. Maximum inlet pressure is 3000 psi, with a flow capacity of 0.15 (without needle valve). Operating temperature range is –20°F to 140°F (–29°C to 60°C). Left-hand threads.
Specifications
Brass construction, two-stage design, CGA170 inlet, ⅛" NPT male outlet, 4–60 psi delivery pressure, 3000 psi max inlet pressure, left-hand threads, 0.15 flow capacity, −20°F to 140°F operating range, 2-high/2-low porting configuration, for propane and compatible non-corrosive gases.
