Item #: AP8897

Price: $1,975.00

Temporarily out of stock; call for availability.

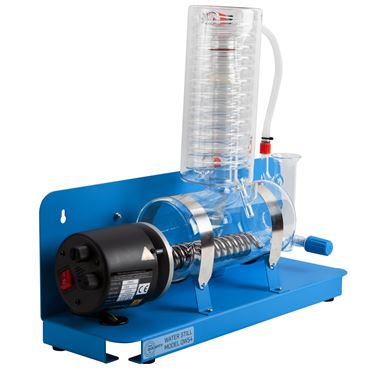

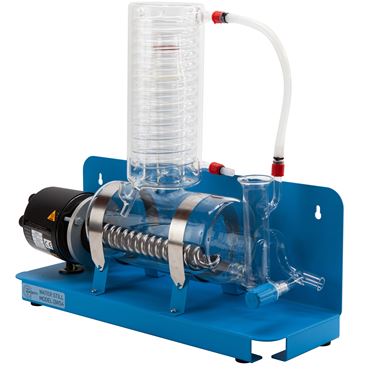

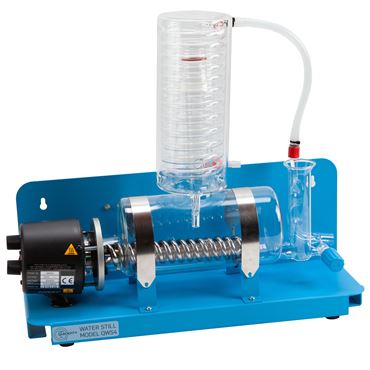

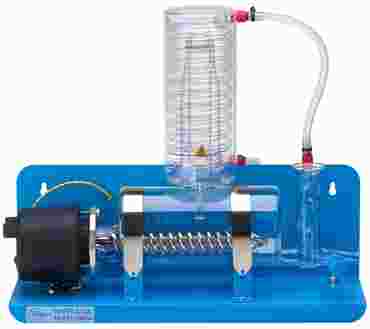

The QWS4 water still is made of borosilicate glass that allows perfect viewing of the distillation process. It comes with a built-in thermostat and is mounted on a metal stand. Available as 230 V and standard 120 V.

See more product details

This item can only be shipped to schools, museums and science centers

Other Options

Item# AP10170 AP8897
Power Requirements 120 V 220/240 V
Price $2,040.00 $1,975.00
Enter number of items

Product Details

The QWS4 still's combination of features and its low price make it perfect for the school laboratory.

Features include:
• Output capacity 4Liters/Hour pyrogen free* single distilled water
• Water still is easy to install and use
• Reliable operation - proven quality components
• High quality distillate complies to ASTM and ISO standards
• Safe operation - heating element has two built-in safety thermostats
• Water still is easy to clean - no glass dismantling necessary
• CE Marked
• Supplied with an instruction/operating manual
• All of the major components are available as spare parts

*Care must always be taken to obtain pyrogen- free distilled water from the water still. The distillate must be tested prior to use.

The still is made of a sturdy borosilicate glass that allows perfect viewing of the distillation process. Glass is exposed so the still requires a good location to avoid accidental breakage. A built-in thermostat protects the still from overheating if the water supply should fail. It is mounted on a metal stand that sits on a table or can mount on a wall. Cleaning is easily done by adding the cleaning agent to a built-in funnel and drainer through a stopcock. 50/60 Hz, UL listed. Dimensions are 20" x 6" x 18".

Specifications

For operation on 220/240 V outlet, which would need to be installed by a licensed electrician before use.

Water Still Output
4 Liters per hour (230 V)


Distillate Quality
pH: 5.0 - 6.5
Conductivity: 3.0 - 4.0 uS/cm
Resistivity: 0.25 - 0.30megOhm-cm
Distillate Temperature: 25 - 35°C


Water Supply Requirements
Water Flow Rate: 1 Liter per minute
Water Pressure: Minimum pressure 3 p.s.i. (0.207 bar)
