Product Details

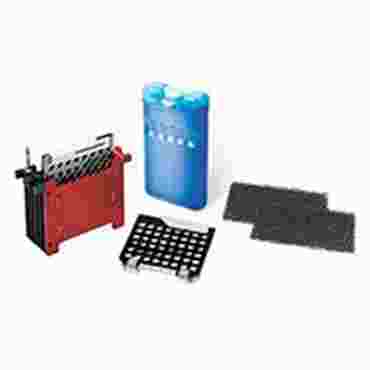

Following electrophoresis, use the Mini Trans-Blot cell to transfer proteins from a gel to a membrane. Visualize proteins of interest on the membrane using one of Bio-Rad’s colorimetric detection assays.
The Mini Trans-Blot cell blotting module is interchangeable with the Mini-PROTEAN Tetra cell electrophoresis module, allowing the same tank and lid to be used for electrophoresis and blotting.
Key features:
- Transfers up to two 10 x 7.5 cm gels simultaneously
- High field strength for rapid 1 hr transfers
- Can be run overnight at low voltage
- Wire electrodes are placed 4 cm apart for strong electrical fields and efficient protein transfer
- Color-coded cassettes and electrodes ensure proper orientation of the gel during transfer
- The Blue Ice cooling unit, completely contained within the Mini Trans-Blot cell, absorbs heat generated during rapid transfers
- Available either as a complete stand-alone apparatus or as a module compatible with the buffer tank and lid of the Mini-PROTEAN Tetra cell
Maximum gel size (W x L): 10 x 7.5 cm
Buffer requirement:450 ml
Gel capacity: 2 Mini-PROTEAN handcast gels or 2 Ready Gel precast gels
Recommended power supply: PowerPac™ HC (PowerPac™ Basic is suitable alternative)
Dimensions (W x L x H): 12 x 16 x 18 cm
Weight: 0.79 kg, (1.7 lb)
Bio-Rad Item No.: 1703935EDU
Specifications
Following electrophoresis, use the Mini Trans-Blot cell to transfer proteins from a gel to a membrane. Visualize proteins of interest on the membrane using one of Bio-Rad’s colorimetric detection assays.
The Mini Trans-Blot cell blotting module is interchangeable with the Mini-PROTEAN Tetra cell electrophoresis module, allowing the same tank and lid to be used for electrophoresis and blotting.
Key features:
- Transfers up to two 10 x 7.5 cm gels simultaneously
- High field strength for rapid 1 hr transfers
- Can be run overnight at low voltage
- Wire electrodes are placed 4 cm apart for strong electrical fields and efficient protein transfer
- Color-coded cassettes and electrodes ensure proper orientation of the gel during transfer
- The Blue Ice cooling unit, completely contained within the Mini Trans-Blot cell, absorbs heat generated during rapid transfers
- Available either as a complete stand-alone apparatus or as a module compatible with the buffer tank and lid of the Mini-PROTEAN Tetra cell
Maximum gel size (W x L): 10 x 7.5 cm
Buffer requirement:450 ml
Gel capacity: 2 Mini-PROTEAN handcast gels or 2 Ready Gel precast gels
Recommended power supply: PowerPac™ HC (PowerPac™ Basic is suitable alternative)
Dimensions (W x L x H): 12 x 16 x 18 cm
Weight: 0.79 kg, (1.7 lb)
