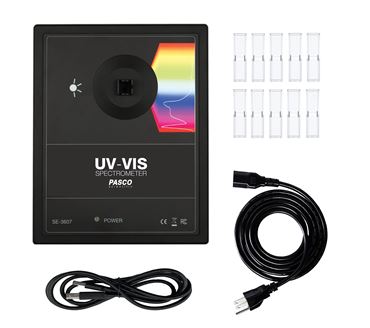

PASCO UV/Vis spectrometer
Item #: TC1662
Price: $2,929.00
In Stock.
The PASCO UV/Vis Spectrometer is a high-accuracy laboratory instrument that enables students to perform ultraviolet and visible light spectroscopy for chemical structure analysis and concentration determination.
See more product details
This item can only be shipped to schools, museums and science centers
Product Details
The PASCO UV/Vis Spectrometer is designed for instructional chemistry and advanced laboratory environments requiring accurate ultraviolet and visible spectroscopy. The system performs spectral scans from 180 to 1050 nm using deuterium (UV) and tungsten (Vis) light sources and a 2048-element CMOS linear detector for high-resolution measurements. Students can measure intensity, absorbance, and transmittance with intuitive, software-based controls provided through PASCO Spectrometry Software. One-click light and dark calibration simplifies setup, while clear alignment markings ensure proper cuvette positioning. The spectrometer supports standard glass cuvettes or 12 mm test tubes and delivers fast scan times ranging from milliseconds to seconds depending on integration settings. USB connectivity and a robust external power supply make this instrument well suited for permanent lab benches, demonstrations, and advanced spectroscopy experiments.
Specifications
Intensity, absorbance, and transmittance measurements, wavelength range 180–1050 nm, wavelength accuracy ±1.0 nm, wavelength interval 0.3 nm, optical resolution ~1.5 nm, spectral bandwidth 0.3 nm reporting interval, 500 lines/mm grating, deuterium (UV) and tungsten (Vis) light sources, photometric accuracy ±5%, photometric range 0.1–1.0 (best accuracy) with full range 0.0–3.0, scan time 4 ms to 10 s, USB connectivity, compatible with glass cuvettes or 12 mm test tubes, dimensions 19.5 × 24.5 × 7.0 cm, 100–240 VAC power input, PASCO Spectrometry Software included, 5-year warranty.
