Price: $799.00
In Stock.
This item can only be shipped to schools, museums and science centers

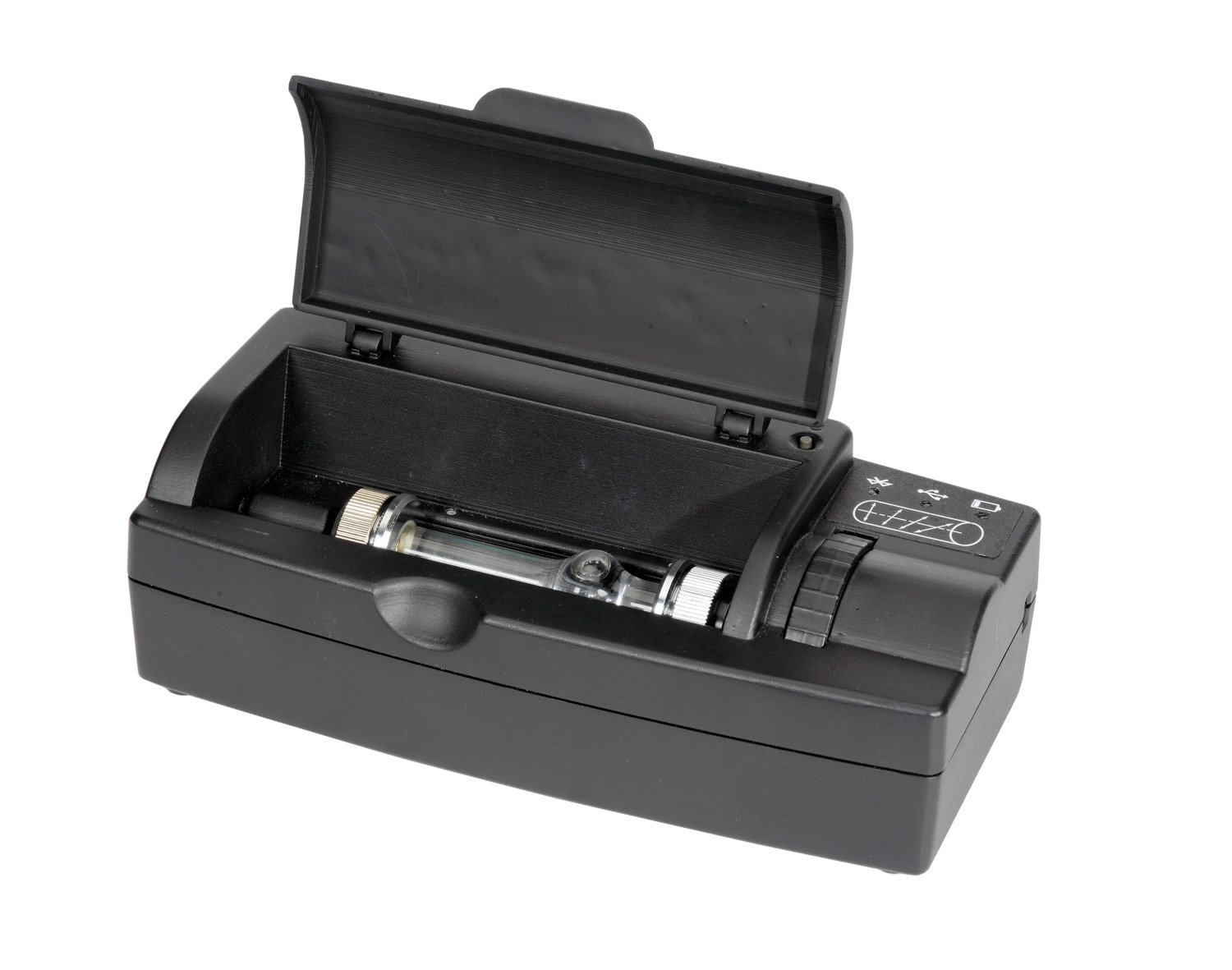

The Wireless Polarimeter has both Bluetooth® and USB connectivity, making it possible to analyze chiral compounds with your iPad®, Chromebook™, Android tablet, or computer. It is ideal for introductory experiments in Organic and Biochemistry, where chiral compounds are of special interest.
PASCO's Wireless Polarimeter passes plane polarized light through a vertical sample, which contains a chiral compound, followed by an analyzer and detector. The optical rotation is determined by finding the angle between the starting position and the location where the optimum light level transmits through the cross polarizer. Students can use the rotation data to calculate the concentration of a chiral sample, while the specific rotation (amount turned per g/ml dissolved) is an intrinsic property that can be used to differentiate molecules or determine racemic mixtures.
What's Included
1x Polarimetry Sample Cell Replacement
| LED light source | 589 nm |
| Optical Rotation Accuracy | ±0.09º |
| Cell Length (horizontal) | 101.3mm ± 0.8mm |
| Cell volume | 12 ml |
| Connectivity | USB and Bluetooth 5.2 |
| Logging | No |
| Battery Type | Rechargeable LiPo |
| Battery connected (Data collection mode) | > 11 hr |
| Battery Type | LiPo |
| Remote logging | Not supported |
| Stored Data Points Memory (Logging) | Not supported |
1 Minimum # of data points with all measurements enabled, actual results depend on enabled measurements.
2 Continuous use in a connected state until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
3 Logging until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
* Normal classroom use is the sensor in active use for 20min/lab for 120 lab periods/yr.
PASCO Item No.: PS-3237
