Pump, Vacuum, Single-Stage
Price: $849.00
In Stock.
The single-stage vacuum pump is a low-maintenance, economical pump that is fast and easy to operate. The oil-less operation produces a moderate vacuum.
See more product details
Product Details

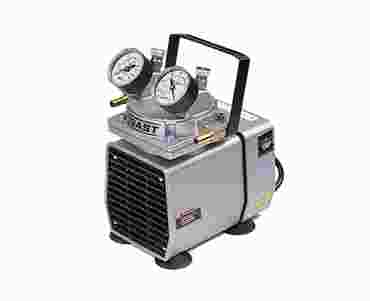

This low-maintenance, economical single-stage vacuum pump is fast and easy to operate, making it an excellent choice for routine laboratory applications. The oil-less design produces a moderate vacuum of 150 mm Hg (approximately ⅕ normal pressure) and can also generate a positive pressure of 3,192 mm Hg—about 4.2 times normal room pressure. The pump delivers 31 liters/min. open flow and operates with a durable 1/8-hp motor running at 1725 rpm. Additional features include built-in gauges, an on/off switch on the power cord, carrying handle, rubber feet for stability, and acceptance of ¼" i.d. tubing. The unit operates on 115 V, 60 Hz and weighs 15 lbs. For the classic Boil Water in a Bell Jar experiment, Flinn recommends using the Two-Stage Vacuum Pump (AP1597).
Specifications
single-stage oil-less vacuum pump, moderate vacuum 150 mm Hg (25.5 inHg), positive pressure up to 3,192 mm Hg, open flow 31 L/min, aspirating speed 1.1 cfm, accepts 1/4" i.d. tubing, 1/8 hp motor, 1725 rpm, 115 V/93 W, dimensions 7.68" × 5.31" × 10.92", approx. 15 lb, rubber feet, carrying handle, built-in gauges and cord-mounted on/off switch
1-800-452-1261
AP1712 Vacuum Pump Manual
