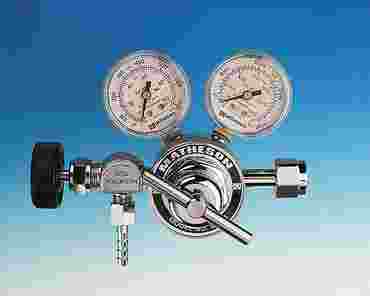

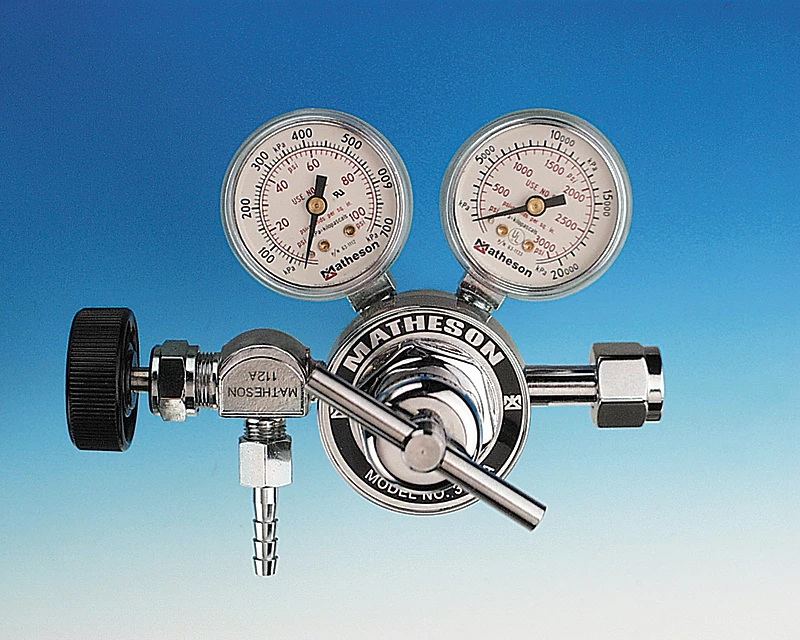

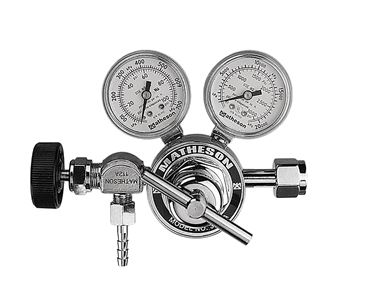

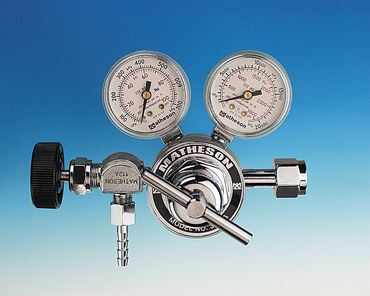

Single Stage Regulator for Refillable Cylinders, Brass

Regulator for Refillable Gas Cylinders
Regulator for Refillable Gas Cylinders
Item #: LB2005

Price: $629.00

In Stock.

This brass single-stage regulator for refillable gas cylinders provides accurate pressure control, with two gauges showing delivery pressure and the amount of gas remaining. Ideal for applications requiring frequent gas dispensing.

See more product details

Product Details

Provide your refillable cylinder with reliable and accurate pressure control using this single-stage brass regulator. Designed for frequent gas dispensing, the regulator delivers 0–60 PSI and includes two gauges—one indicating delivery pressure and the other showing the remaining gas in the refillable cylinder. The durable brass body ensures stability and longevity during routine use. This regulator features a CGA180 inlet, right-hand (standard) threads, ⅛" NPT female porting, and a 2-high/2-low port configuration. Maximum inlet pressure is 3000 psi, with a flow capacity of 0.15 (without needle valve). Operating temperature range is –20°F to 140°F (–29°C to 60°C). Not for use with corrosive gases such as ammonia. Compatible with butane and similar noncorrosive gases.

Specifications

Brass construction, single-stage design, dual gauges, CGA180 inlet, right-hand threads, 0–60 PSI delivery range, 3000 psi max inlet pressure, ⅛" NPT female porting, 2-high/2-low configuration, –20°F to 140°F operating range, flow capacity 0.15, compatible with butane.
