Price: $3,599.00
This item is temporarily out of stock. The expected available to ship date is 02/27/2025
This item can only be shipped to schools, museums and science centers

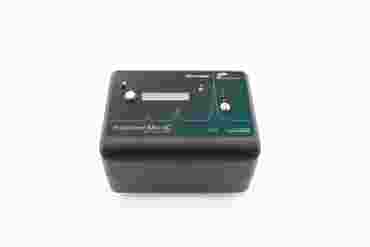

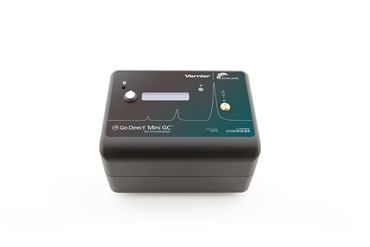

Teach students chromatography with an affordable, portable gas chromatograph that uses a unique carbon-nanotube chemiresistance detector to measure both polar and nonpolar compounds. With the easy-to-use Go Direct Mini GC and the free Vernier Instrumental Analysis® app, students can separate, analyze, and identify substances contained in a volatile liquid or gaseous sample.
Go Direct Mini GC can connect via Bluetooth® wireless technology or wired via USB to your device, providing an opportunity for you to choose the solution best for your laboratory.
Developed with Seacoast Science, Go Direct Mini GC uses an efficient, software-controlled internal pump system. This design allows the Go Direct Mini GC to use room air as the carrier gas, so there is no need to purchase an external carrier gas tank or maintain a gas filtration system.
Easily incorporate gas chromatography into your curriculum using our e-book Chromatography Experiments with the Go Direct Mini GC™ available for free with your purchase.
You can also use this gas chromatograph to identify unknown compounds, monitor chemical reactions, and measure products from a distillation.
Column: Restek MXT-502.2 Column – Siltek-treated stainless steel with proprietary diphenyl/dimethyl polysiloxane phase
Column operating temperature: 30°C to 160°C with a maximum heating ramp of 10°C/min
Detector: The unique Seacoast Science carbon-nanotube chemiresistance detector is compatible with air as the carrier gas and provides sensitivity to polar and nonpolar compounds.
Dimensions and weight: 108 mm height, 191 mm length, 133 mm width; 1.3 kg
Power requirements: 24 VDC, 2.5 A from an external power supply
Utility: External power supply rated for 100–240 VAC, 1.5 A 50–60 Hz
Carrier gas: Ambient air
Environmental conditions: Temperature: 5°C to 40°C Humidity: 95% or less, (non-condensing environment)
Liquid injection volume: 0.01 to 0.6 µL
Operating pressure (above ambient pressure): 1 to 21 kPa
