Color and Light—Spectrum Demonstration Kit

By: Doug De La Matter, Retired, Madawaska Valley D.H.S., Barry’s Bay, ON

Item #: AP6172

Price: $47.10

In Stock.

In the Color and Light Spectrum Demonstration Kit for physical science and physics, shed light on the concept of color perception. The demonstration uses a diffraction grating and an overhead projector to cast a large spectrum.

See more product details

Product Details

Shed light on the concept of color perception with this overhead projector demonstration. Why are some objects blue and others red? Does a color filter actually change white light into colored light? What color is seen when blue and yellow light are blended together? This demonstration uses a diffraction grating and an overhead projector to cast a large spectrum onto a wall or projection screen. The pure colors of the projected spectrum are then manipulated with the simple materials in this kit to study where color originates and to answer the questions above. Instructions and materials are provided for three different demonstrations that will surely illuminate and educate your students about color absorption, color reflection, color filtering and blending colors of light. All the materials, except the food dye, can be reused.

Concepts: Visible light spectrum, white light, color, reflection, absorbance.
Time Required: 45 minutes
Note: Requires an overhead projector.

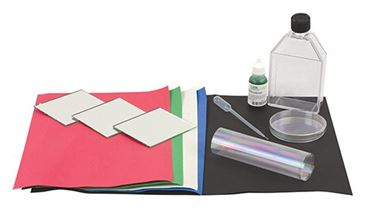

Materials Included in Kit:
Food dye, green, 30 mL
Construction paper, black, 12" x 18", 2
Construction paper, blue, 9" x 12"
Construction paper, green, 9" x 12"
Construction paper, red, 9" x 12"
Construction paper, white, 9" x 12"
Culture (petri) dish 90 x 15 mm
Diffraction grating square, 5½" x 5½"
Glass mirror, double strength, ground edges, 3⅜" x 4" x ⅛", 3
Microchemistry solution bottle, 275 mL
Pipet, Beral-type, extra fine tip

Correlation to Next Generation Science Standards (NGSS)

Science & Engineering Practices

Developing and using models
Planning and carrying out investigations

Disciplinary Core Ideas

MS-PS4.A: Wave Properties
MS-PS4.B: Electromagnetic Radiation
HS-PS4.A: Wave Properties

Crosscutting Concepts

Systems and system models
Stability and change
