Item #: TC1617

Price: $99.00

In Stock.

Go Direct™ Conductivity sensor measures the electrical conductivity of an aqueous solution up to 20,000 µS/cm. Features a built-in temperature sensor to simultaneously read temperature and conductivity. Connects wirelessly via Bluetooth® or wired via USB.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

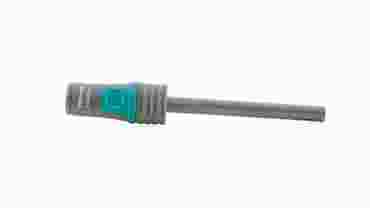

Go Direct Conductivity Probe determines the ionic content of an aqueous solution by measuring its electrical conductivity. Features a built-in temperature sensor to simultaneously read conductivity and temperature. Automatic temperature compensation allows the user to calibrate the probe in the lab and then take measurements outdoors without temperature changes affecting data. This temperature compensation can be turned off to perform conductivity studies as a function of temperature. The Go Direct Conductivity Probe has a range of 0 to 20,000 μS/cm to provide optimal precision in any given range. An alternating current at its electrodes prevents polarization and electrolysis, reducing contamination of solutions. Its ABS-body graphite electrode resists the corrosion typical in metal electrodes. The Go Direct Conductivity Probe can be used in a variety of experiments such as demonstrating diffusion of ions through membranes, investigating the difference between ionic and molecular compounds, strong and weak acids, or ionic compounds that yield different ratios of ions, and measuring Total Dissolved Solids (TDS).

Go Direct™ sensors connect directly to your mobile device, Chromebook, or computer using the free Graphical Analysis™ 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth, allowing you to choose the solution best for your classroom or laboratory.

The Go Direct robust rechargeable battery offers long battery life and provides always-ready operation. Monitor battery life directly from the free Graphical Analysis™ 4 app. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Specifications

Range: 0 to 20,000 μS/cm (0 to 10,000 mg/L TDS)
Temperature compensation: Automatic from 5 to 35°C, can be turned off
Temperature range (can be placed in): 0 to 80°C
Cell constant: 1.0 cm-1
Description: ABS body, parallel carbon (graphite) electrodes
Dimensions: 12 mm OD and 120 mm length
Connections: Bluetooth wireless or USB wired
