Item #: TC1672

Price: $1,099.00

In Stock.

The Wireless 2-Axis Force Platform measures forces applied normal to its surface, as well as forces applied parallel to its surface.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

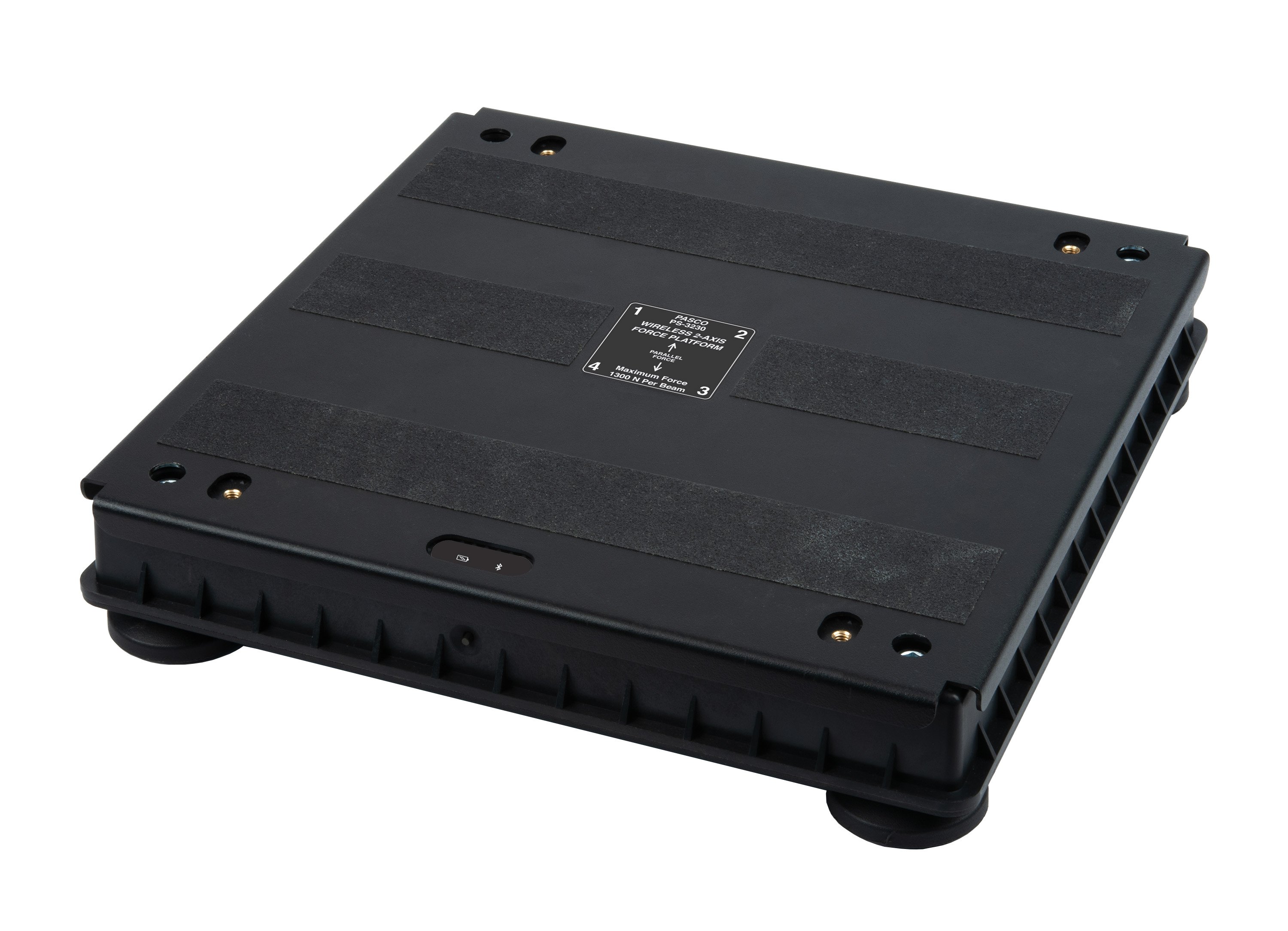

Building on the success of the PASPORT 2-Axis Force Platform, the Wireless 2-Axis Force Platform offers users the same reliable performance with enhanced durability and a convenient, wireless connection. The new design features a sturdy, glass-filled nylon platform with a sheet metal top and five force beams. Four vertical beams measure forces acting normal to the platform's surface, while a fifth beam, attached to the movable sheet metal top, measures forces acting parallel to the platform's surface. The platform also includes four adjustable feet that make leveling quick and easy, while ensuring a stable connection is made between the force beams and the surface below.

With its new wireless design, the Wireless 2-Axis Force Platform is easier to use than ever, providing both flexibility and custom sample rates for high-speed sampling over Bluetooth Low Energy (up to 10 kHz). Students can measure the force applied to each beam independently or the overall normal force acting on the platform, with measurements up to 5,200 N. They can also measure the normal and parallel forces acting on the platform simultaneously. Applications include determining the static weight of a structure or person, measuring forces associated with the impacts of falling objects, and determining the dynamic vertical and parallel forces that arise when moving or jumping. Simply place the platform on a floor or tabletop to measure vertical force, or mount it to a wall to measure horizontal force.


Normal Force Range -1320 N to 5280 N (resultant)
Parallel Force Range ±1,300 N
Resolution 0.2 N
Maximum Sample Rate (continuous) 1 kHz
Maximum Sample Rate (triggering) 10 kHz
Force Over-Limit Protection -500N to 2000 N per vertical beam; ±2,000 N parallel beam
Dimensions 35 x 35 x 7.1 cm
Connectivity USB and Bluetooth 5.2
Logging No
Battery Type Rechargeable LiPo
