Item #: TC1666

Price: $205.00

In Stock.

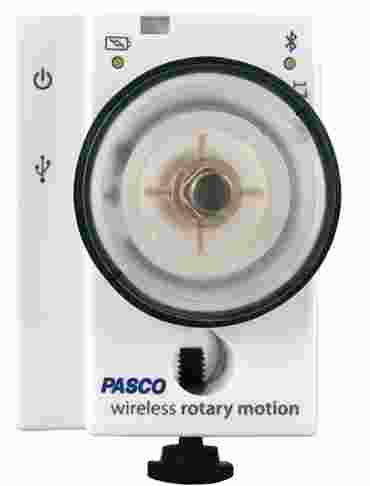

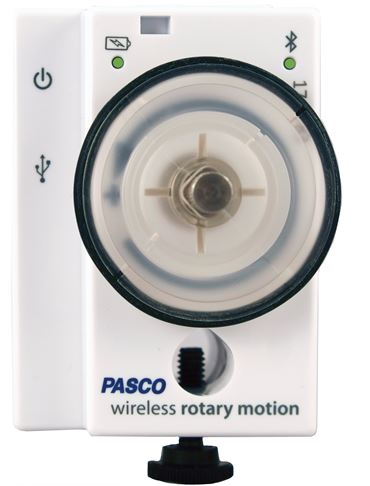

The Wireless Rotary Motion Sensor measures angle, angular velocity, and angular acceleration, as well as their linear equivalents.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

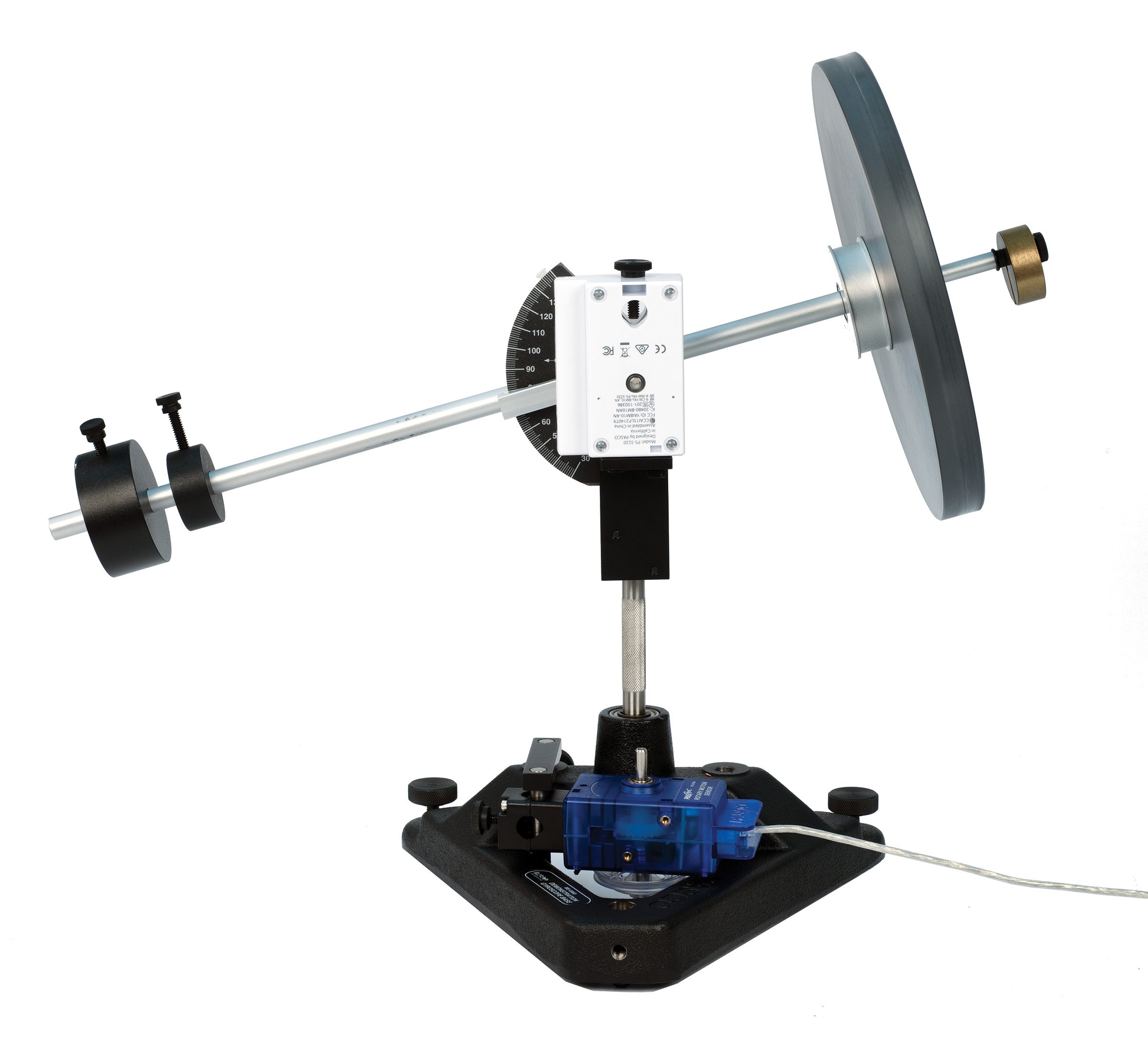

The Wireless Rotary Motion Sensor measures angle, angular velocity, and angular acceleration, as well as their linear equivalents. The included three-step pulley allows different torques to be applied, rotating a rigid system at different rates of acceleration. The included rod-mounting holes let you orient the sensor for different experiments. The Wireless Rotary Motion Sensor connects directly to your devices via Bluetooth or USB.

Specifications

Resolution Angular: 0.18° ≡ Linear: 0.0157 mm (with 10 mm pulley radius)
Maximum Rotation Rate 30 rev/s
Three-step Pulley 10 mm, 29 mm, and 48 mm diameters
Shaft Diameter 6.35 mm
Optical encoder 2000 divisions/rev, bidirectional
Connectivity USB and Bluetooth 5.2
Logging Yes
Battery Type Rechargeable LiPo

Battery & Logging

Stored Data Points Memory (Logging) 1 >55,000
Battery - Connected (Data Collection Mode) 2 >12 hr
Battery - Logging (Data Logging Mode) 3 NA
Battery Type Rechargeable LiPo

1 Minimum # of data points with all measurements enabled, actual results depend on enabled measurements.

2 Continuous use in a connected state until battery failure, actual results will depend on sample rate, active measurements, and battery condition.

3 Logging until battery failure, actual results will depend on sample rate, active measurements, and battery condition.

* Normal classroom use is the sensor in active use for 20min/lab for 120 lab periods/yr.
