Price: $165.00
In Stock.
This item can only be shipped to schools, museums and science centers

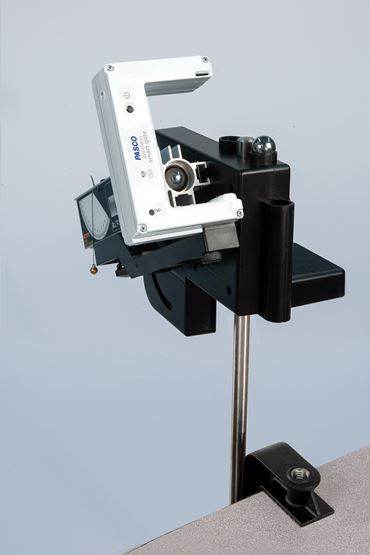

The Wireless Smart Gate is a multi-purpose photogate. It has dual photogate beams spaced at 1.5 cm to accurately measure speed and velocity. The built-in laser switch (when used with any laser) allows you to time objects too large to fit through the arms of the photogate. The integrated slot on the arm receives photogate tape that also helps measure the movement of larger and faster objects, like model rockets. The auxiliary port is for adding an additional photogate head or Time-of-Flight Accessory.
We do not recommend using two Wireless Smart Gates in the same experiment unless the measured times are relatively long (greater than one-half second) since synchronization is limited to 2 ms.

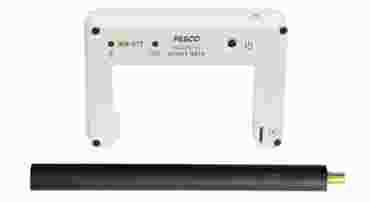

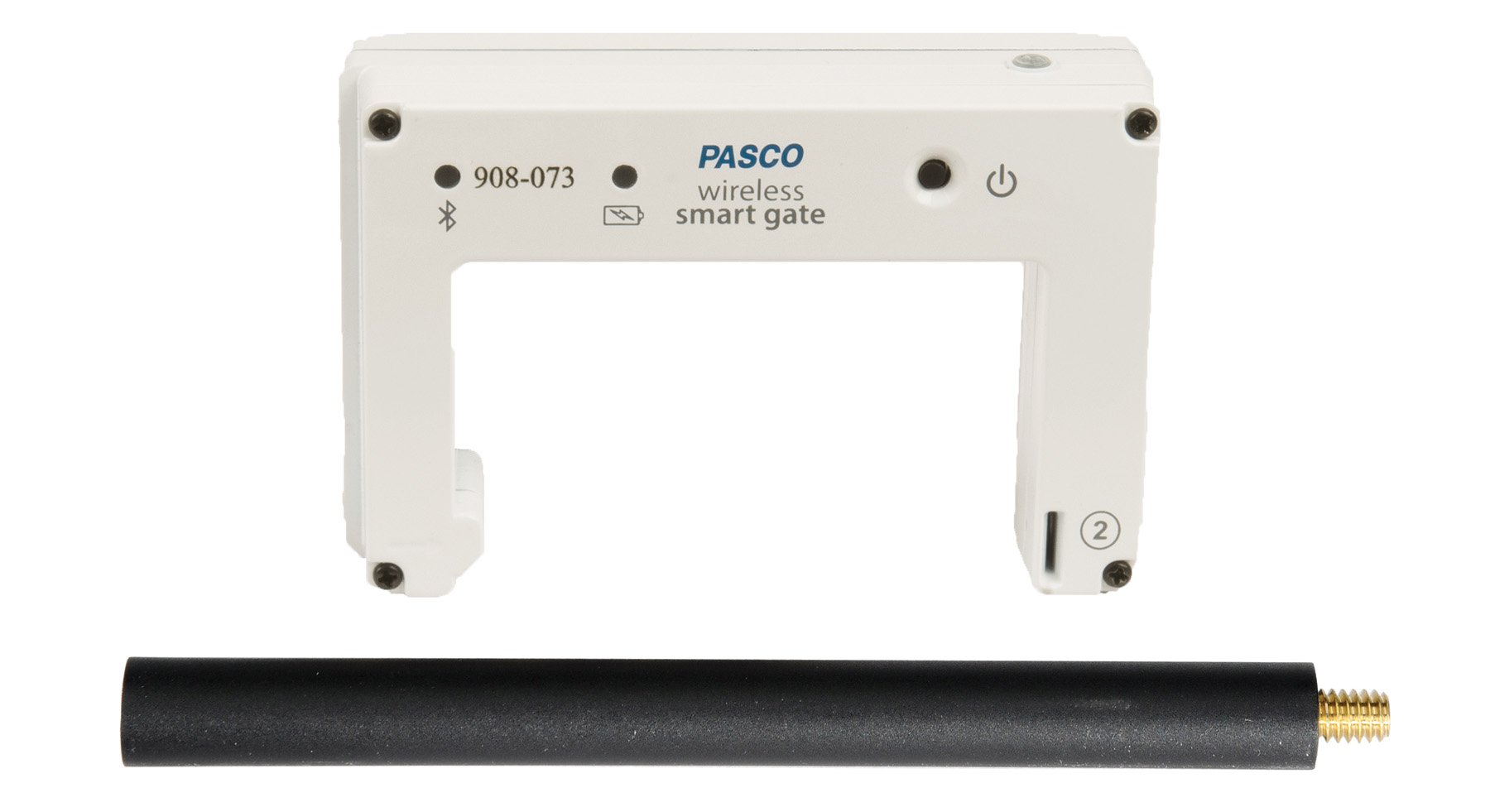

Included: Smart Gate (1); Mounting Rod (1)
| Gate Separation | 1.5 cm |
| Timing Resolution | 3 µs |
| Minimum Block Time | 1.5 ms |
| Beam Wavelength | 940 nm |
| Gate Inside Width | 7.2 cm |
| Dimensions (L x W x H) | 10.5 x 7.0 x 3.0 cm |
| Approximate Mass | 90 g |
| Connectivity | USB and Bluetooth 5.2 |
| Logging | No |
| Battery Type | Rechargeable LiPo |
| Stored Data Points Memory (Logging) 1 | Not Supported |
| Battery - Connected (Data Collection Mode) 2 | >16 hr (>8 hr with Aux Port) |
| Battery - Logging (Data Logging Mode) 3 | Not Supported |
| Battery Type | Rechargeable LiPo |
1 Minimum # of data points with all measurements enabled, actual results depend on enabled measurements.
2 Continuous use in a connected state until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
3 Logging until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
* Normal classroom use is the sensor in active use for 20min/lab for 120 lab periods/yr.
PASCO Item No.: PS-3225
