With the Pressure vs. Temperature Gas Law Apparatus, demonstrate the relationship between the pressure and temperature of a gas and accurately determine the value of absolute zero. The apparatus is completely reusable and a great value.
See more product details
(Select option to see volume pricing availability)

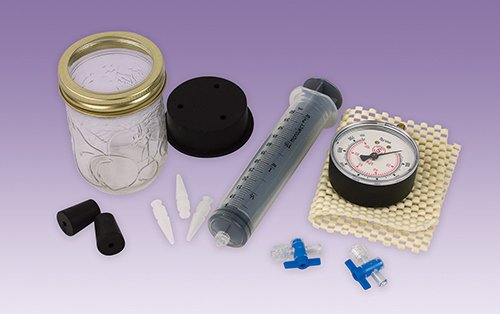

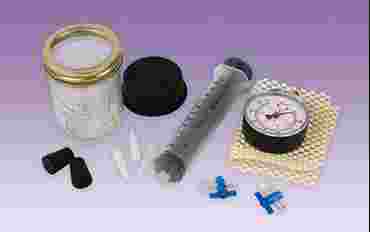

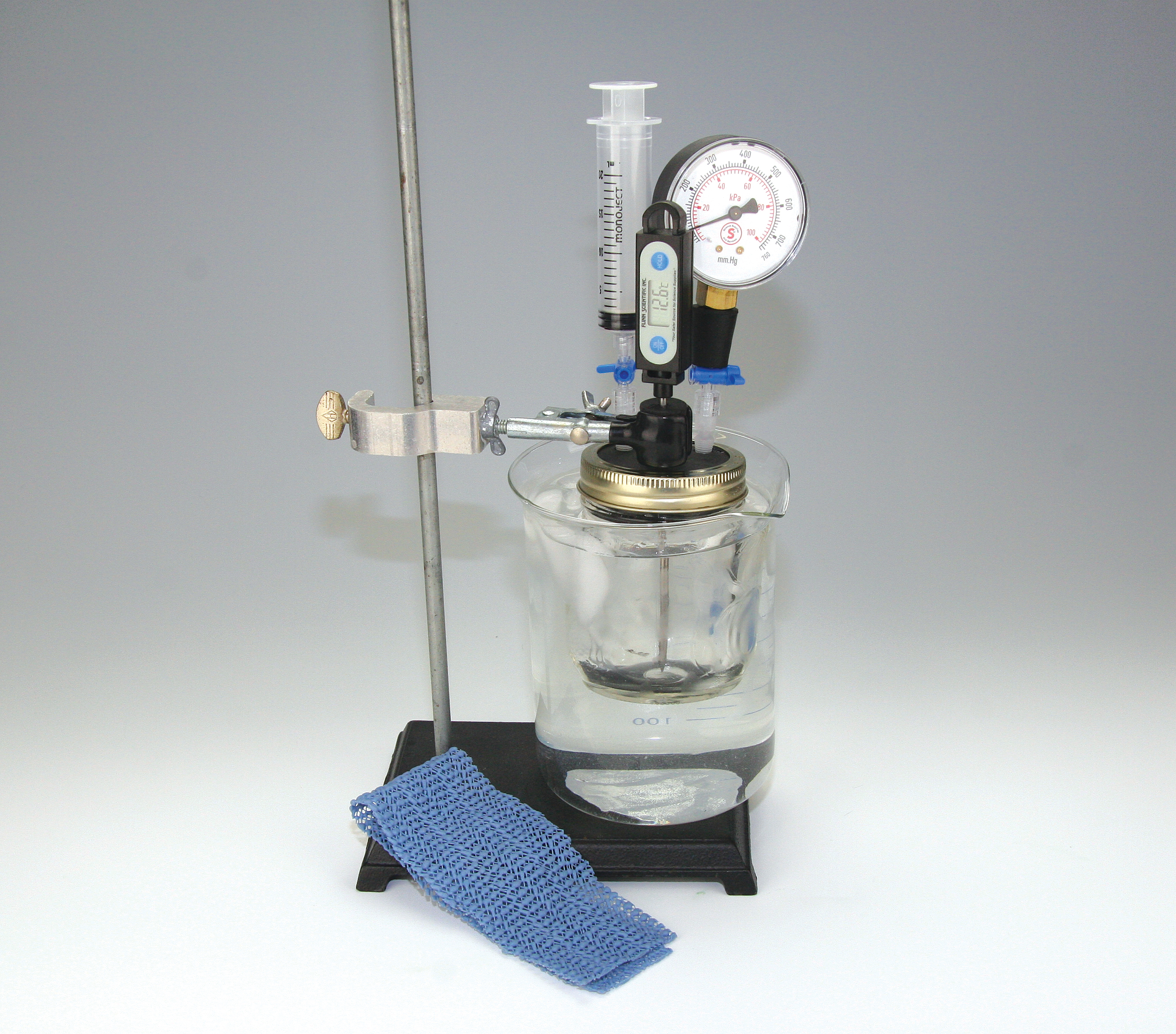

Demonstrate the relationship between the pressure and temperature of a gas, and accurately determine the value of absolute zero, with this innovative gas law apparatus. Apparatus consists of a Mason pressure flask fitted with a special stopper to ensure an air-tight fit, dual-scale pressure gauge, syringe with Luer-lock fitting and Luer-lock adapters and stopcocks. Simply trap air in the flask at atmospheric pressure, add additional gas via the syringe, cool the flask in an ice-bath and then begin slow heating, followed by reverse cooling, to obtain temperature and pressure measurements. Graph the data and extrapolate backwards to determine absolute zero—students will be amazed at the linear fit and the accuracy of the results! Apparatus is completely reusable, a great value! Includes detailed Teacher Notes, along with extensive background information, student worksheet and real sample data and results.
Note: A digital thermometer is required and available separately.
Correlation to Next Generation Science Standards (NGSS)
Science & Engineering Practices
Developing and using models
Planning and carrying out investigations
Disciplinary Core Ideas
MS-PS1.A: Structure and Properties of Matter
MS-PS3.A: Definitions of Energy
HS-PS3.A: Definitions of Energy
Cause and effect
Scale, proportion, and quantity
Energy and matter
MS-PS1-4. Develop a model that predicts and describes changes in particle motion, temperature, and state of a pure substance when thermal energy is added or removed.
MS-PS3-4. Plan an investigation to determine the relationships among the energy transferred, the type of matter, the mass, and the change in the average kinetic energy of the particles as measured by the temperature of the sample.
HS-PS3-2. Develop and use models to illustrate that energy at the macroscopic scale can be accounted for as a combination of energy associated with the motion of particles (objects) and energy associated with the relative position of particles (objects).
