Product 12667

By: Bob Becker, Kirkwood High School, Kirkwood, MO

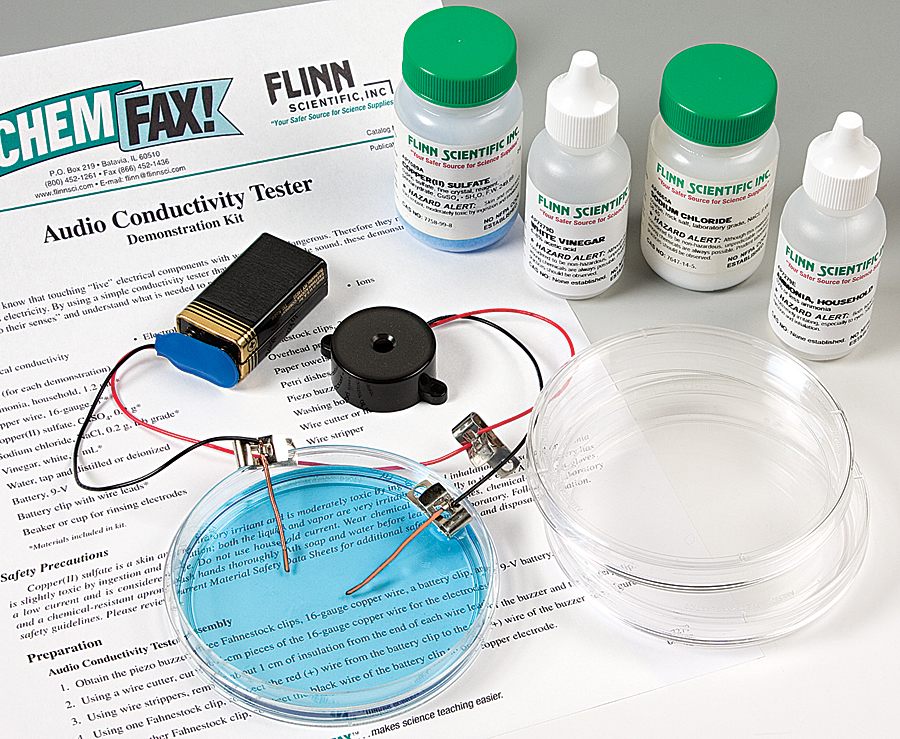

The Audio Conductivity Tester Electrochemistry Demonstration Kit includes a conductivity tester that uses a piezoelectric buzzer and emits a sound when a circuit is complete. Students learn about electrolytes, nonelectrolytes, and ions.

See more product details

Options:

(Select option to see volume pricing availability)

Product Details

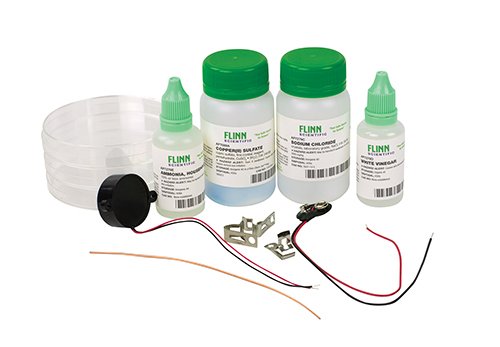

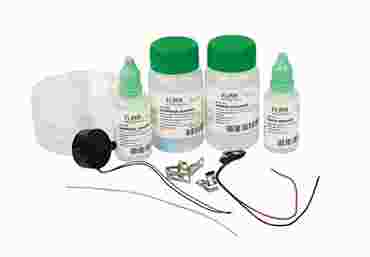

Students reading a “Caution: Keep away from water!” notice on an electrical appliance may assume all water conducts electricity. Clear up their misconception with this easy-to-assemble conductivity tester that uses a piezoelectric buzzer and emits an audible sound when a circuit is complete. Use the first demonstration to engage students in a lively discussion about why three colorless liquids produce varying sounds—or no sound at all! In the second demonstration, students see and hear the effect concentration has on the conductivity of an electrolyte. The buzzer is sensitive enough to track the diffusion of ions as a few crystals dissolve in solution and form a complete circuit. The conductivity of acids and bases is explored in the third demonstration. Listen to the surprising results when an acid and base are combined! Enough chemicals are provided to perform each demonstration seven times with one reusable conductivity tester. Concepts: Electrical conductivity, electrolytes vs. nonelectrolytes, ions. Time Required: 20 minutes Materials Provided: Ammonia, copper wire, copper(II) sulfate, sodium chloride, vinegar, battery clip with wire leads, Fahnestock clips, Petri dishes, piezo buzzer. Note: A 9-V battery is required and available separately.

Correlation to Next Generation Science Standards (NGSS)

Science & Engineering Practices

Analyzing and interpreting data

Disciplinary Core Ideas

MS-PS1.A: Structure and Properties of Matter
HS-PS1.A: Structure and Properties of Matter
HS-PS2.B: Types of Interactions

Crosscutting Concepts

Structure and function
Patterns
Stability and change

Performance Expectations

HS-PS2-6. Communicate scientific and technical information about why the molecular-level structure is important in the functioning of designed materials.
