Absolute Zero Demonstration Device for physical science and physics shows the relationship of pressure to temperature of a gas, allowing the user to determine the value of absolute zero.

See more product details

Options:

(Select option to see volume pricing availability)

Product Details

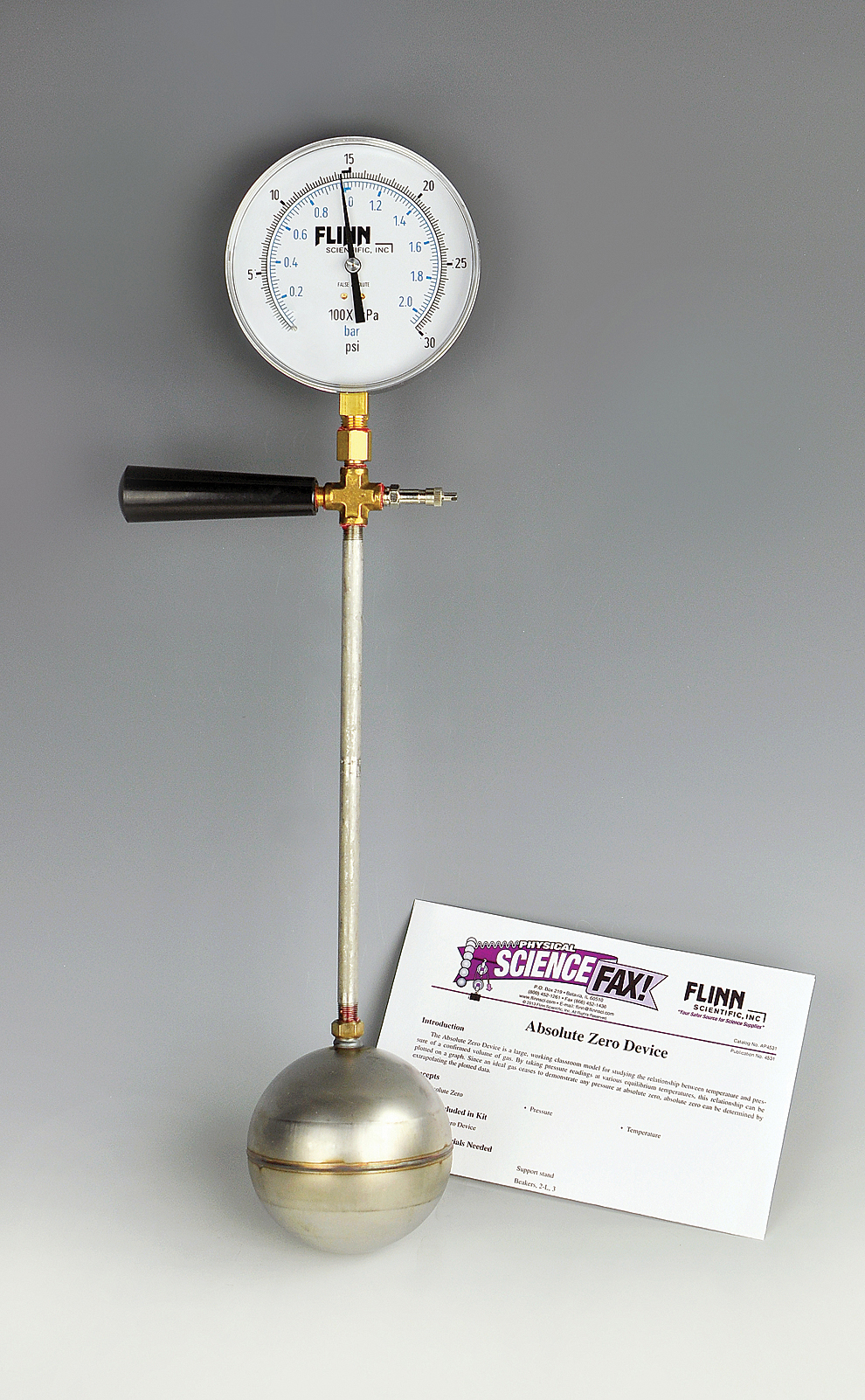

Unique device shows the relationship of pressure to temperature of a gas, allowing students to determine the value of absolute zero. The bulb is immersed in hot water, cold water and a dry ice-acetone mixture. Temperatures and pressure readings are recorded. Pressure versus temperature readings, when plotted, provide a value of absolute zero. Bulb diameter 100 mm. A thermometer (thermocouple) with a -100 ºC to 100 ºC range is required and available separately.

Correlation to Next Generation Science Standards (NGSS)

Science & Engineering Practices

Developing and using models
Analyzing and interpreting data
Using mathematics and computational thinking

Disciplinary Core Ideas

MS-PS1.A: Structure and Properties of Matter
MS-PS3.A: Definitions of Energy
MS-PS3.B: Conservation of Energy and Energy Transfer
HS-PS3.A: Definitions of Energy
HS-PS3.B: Conservation of Energy and Energy Transfer

Crosscutting Concepts

Patterns
Cause and effect
Energy and matter
Systems and system models

Performance Expectations

MS-PS1-4: Develop a model that predicts and describes changes in particle motion, temperature, and state of a pure substance when thermal energy is added or removed.
MS-PS3-4: Plan an investigation to determine the relationships among the energy transferred, the type of matter, the mass, and the change in the average kinetic energy of the particles as measured by the temperature of the sample.
