Item #: TC1620

Price: $499.00

In Stock.

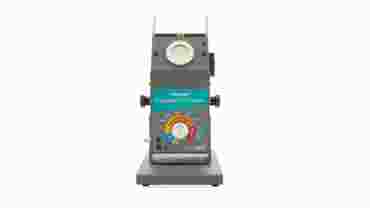

Go Direct™ Melt Station accurately measures melting temperatures of a solid up to 260 °C and the real-time graphing provides a unique perspective of the melting process. Connects wirelessly via Bluetooth® or wired via USB.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

Investigate the visual detection capillary method of melting point determination with the Go Direct Melt Station. It accurately measures melting temperatures of a solid (up to 260°C), and the real-time graphing provides a unique perspective of the melting process. The wide-angle observation and magnification window, LED-lit heater block, and adjustable tilt base give students a clear view of the substance as they witness the state change. Internal cooling fans reduce the waiting time between sample testing. Also included is an important safety feature that automatically powers down the heating block after 60 minutes with no change to the control knob.

The Go Direct Melt Station can be used in a variety of experiments such as determining the melting temperature of an known organic solid such as aspirin, ibuprofen, or caffeine; identifying an unknown organic solid by its melting temperature; and using melting temperature to analyze reaction products.

Go Direct™ sensors connect directly to your mobile device, Chromebook, or computer using the free Graphical Analysis™ 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth, allowing you to choose the solution best for your classroom or laboratory.

Specifications

Base: 13 × 15 × 1.5 cm
Body: 9 × 9 × 24 cm
Weight: 1.0 kg (2.2 lbs)
Range: Ambient to 260°C
Resolution: 0.10°C
Accuracy: ±0.31 + 0.0006T, where T is the temperature in Celsius
Safety shut down: The heating block is automatically powered down after approximately 60 minutes of heating.
Capillary tubes: 1.4–1.8 mm outside diameter, 100 mm length
Capillary tube slots: 3
Viewing lens: 27 mm diameter (functional), 30 mm (actual)
Lighting of capillary slots: 3 white LEDs
Lighting of control dial: Red LED (indicates heating mode), Blue LED (indicates cooling mode with cooling fan running), Yellow LED (safety shut off activated)

Connections: Bluetooth wireless or USB wired
