Item #: TC1632

Price: $99.00

In Stock.

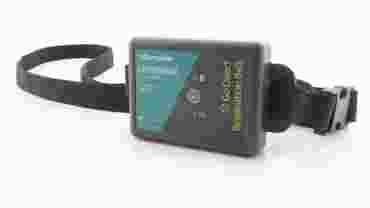

The Go Direct™ Respiration Belt measures human respiration rate and patterns. The belt sensor connects wirelessly via Bluetooth® technology or USB directly to your device.

See more product details

Product Details

Quickly measure human breathing patterns with the Go Direct™ Respiration Belt. The device features a force sensor and an adjustable nylon chest strap as well as a built-in pedometer. An LED indicator provides feedback so belt tension can be optimized, and respiration rate is reported through a free graphical analysis app, which makes comparison studies between subjects or experiments easy.

Go Direct sensors connect wirelessly via Bluetooth® technology or USB directly to your mobile device, Chromebook or computer using the free Graphical Analysis™ 4 app—no additional equipment or software purchases are necessary. The robust Go Direct rechargeable battery offers long battery life that can be monitored directly from app, providing always ready operation.

Specifications

Range: 0–50 N
Resolution: 0.01 N
Response time: 50 ms
Respiration rate calculation: Sample window (30 secs); advance interval (10 secs)
Step rate calculation: Sample window (10 secs); advance interval (10 secs)
Maximum chest circumference: 140 cm
