Item #: TC1674

Price: $229.00

This item is temporarily out of stock. The expected available to ship date is 12/06/2024

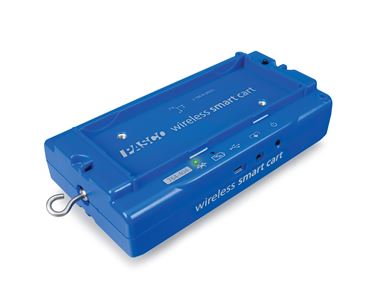

The Smart Cart is the ultimate tool for your physics lab and includes built-in sensors for measuring force, position, velocity, three axes of acceleration, and three axes of rotational velocity. Patent No. 10481173

See more product details

This item can only be shipped to schools, museums and science centers

Other Options

Item# TC1674 TC1673
Color Blue Red
Price $229.00 $229.00
Enter number of items

Product Details

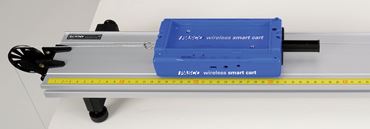

The patented Smart Cart is the ultimate tool for studying kinematics, dynamics, Newton’s Laws, and more. It is based on a durable ABS body with nearly frictionless wheels, just like our high quality PAScars. Now, we’ve added built-in sensors that measure force, position, velocity, and acceleration. The versatile Smart Cart can collect measurements on or off a track and transmit the data wirelessly over Bluetooth. In essence, it is a wireless dynamics cart that combines all the necessary sensors, without requiring any additional hardware.

Smart Carts are ideal for studying mechanics topics, such as kinematics and dynamics. The built-in load cells enable two Smart Carts to visually demonstrate Newton’s Third Law with ease. Additionally, built-in sensors for force and acceleration enable students to investigate Newton’s Second Law in minutes. Smart Carts truly are a physics lab on wheels, and now you can own the most advanced physics cart ever created, all without the restrictions of cables.

• Built-in ±100 N force sensor
• 3-axis accelerometer
• 3-axis rotational velocity sensor
• Bluetooth® connectivity
• Rechargeable battery
• Motion encoder measures position and velocity on or off the track
• Magnetic bumper for force sensor
• 3-position plunger
• Mass tray
• Velcro® tabs
• Force sensor hook and rubber bumper

Included: Hook (1); Rubber bumper (1); Magnetic bumper (1); USB cable for charging (1)

Specifications

Optical Encoder
  • Range: ±3.0 m/s
  • Resolution: 0.2 mm
  • Maximum Sample Rate: 500 Hz
Accelerometer
  • Range: ±16 g
  • Accuracy: ±0.2 m/s² at 9.8 m/s²
  • Maximum Sample Rate: 500 Hz
Force Sensor
  • Range: 100 N
  • Resolution: 0.1 N
  • Accuracy: ±1.0%
  • Maximum Sample Rate: 2 kHz
Gyro Sensor
  • Range: ±245 deg/sec
  • Maximum Sample Rate: 500 Hz
Mass Without Accessories 250 g
Patent No. 10481173
Connectivity USB and Bluetooth 5.2
Logging No
Battery Type Rechargeable LiPo

Battery & Logging

Stored Data Points Memory (Logging) 1 Not Supported
Battery - Connected (Data Collection Mode) 2 Up to 7 hr
Battery - Logging (Data Logging Mode) 3 Not Supported
Battery Type LiPo

1 Minimum # of data points with all measurements enabled, actual results depend on enabled measurements.

2 Continuous use in a connected state until battery failure, actual results will depend on sample rate, active measurements, and battery condition.

3 Logging until battery failure, actual results will depend on sample rate, active measurements, and battery condition.

* Normal classroom use is the sensor in active use for 20min/lab for 120 lab periods/yr.



PASCO Item No.: ME-1241
