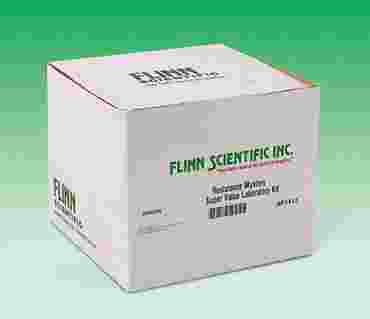

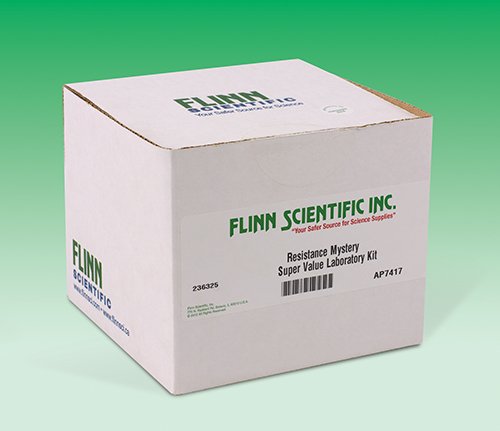

In the Resistance Mystery Electricity and Circuits Laboratory Kit, investigate the essential function of resistors in modern electronics. Imagine life without your favorite electronic devices.

See more product details

Options:

(Select option to see volume pricing availability)

Product Details

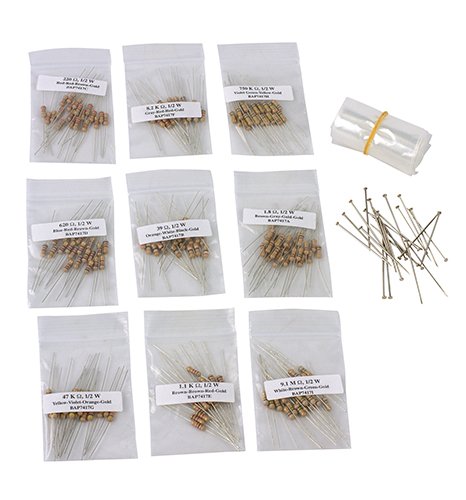

Imagine life without your favorite electronic devices! Use this guided-inquiry lab activity to investigate the essential function of resistors in modern electronics. In this two-part “mystery” analysis, students first decode the color bands on a series of nine unidentified resistors to predict their resistance values. They then test their predictions by placing the resistors in series and parallel circuit combinations and measure the current and voltage. Students see how resistors help control the current to circuit components and split voltage to bring power to multiple components. Versatile and very affordable activity connects concepts and applications and will fit in any electricity unit. Super Value Kit is complete for 15 student groups. All materials are reusable!

Correlation to Next Generation Science Standards (NGSS)

Science & Engineering Practices

Asking questions and defining problems
Developing and using models
Analyzing and interpreting data
Engaging in argument from evidence

Disciplinary Core Ideas

MS-PS2.B: Types of Interactions
MS-ETS1.A: Defining and Delimiting Engineering Problems
HS-PS1.A: Structure and Properties of Matter
HS-PS3.C: Relationship between Energy and Forces

Crosscutting Concepts

Cause and effect
Systems and system models
Energy and matter

Performance Expectations

HS-PS1-1: Use the periodic table as a model to predict the relative properties of elements based on the patterns of electrons in the outermost energy level of atoms.
HS-PS1-2: Construct and revise an explanation for the outcome of a simple chemical reaction based on the outermost electron states of atoms, trends in the periodic table, and knowledge of the patterns of chemical properties.
MS-PS1-2: Analyze and interpret data on the properties of substances before and after the substances interact to determine if a chemical reaction has occurred.
