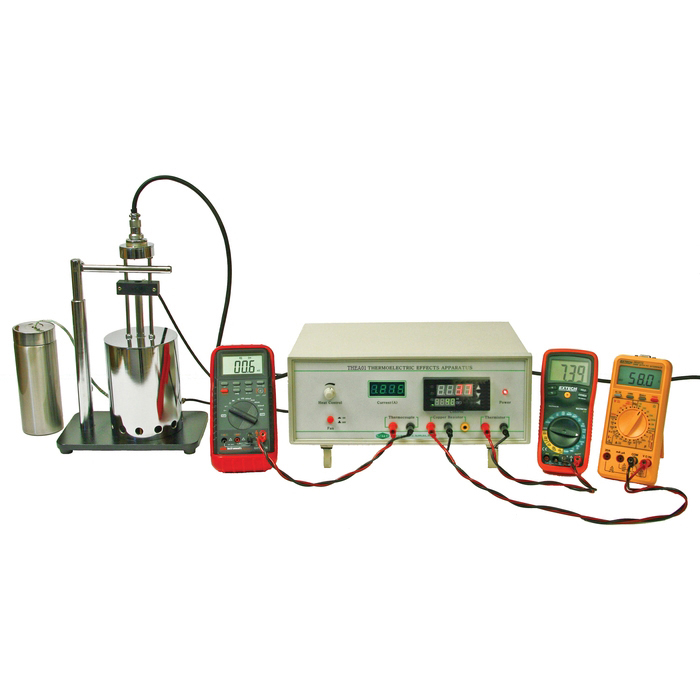

In the Thermoelectric Effects Apparatus for physical science and physics, study the thermal behavior of a three-pole metal resistor, thermistor and thermocouple, and also explore the features of a closed loop digital temperature control system.

See more product details

Options:

(Select option to see volume pricing availability)

Product Details

Your students will be fascinated with this educational device that allows them to investigate the thermal characteristics of three commonly-used electrical thermometry devices. Study the thermal behavior of a three-pole metal resistor, thermistor and thermocouple, and also explore the features of a closed loop digital temperature control system. The signals from the three sample devices can be read by a suitable measuring device provided by the user (e.g., digital multimeter). The digital control system can be operated in P, PI, PD or PID mode to show their characteristics when controlling the oven temperature with or without fan cooling. A wide range of parameters and alarms can be set to explore their effects.

Each apparatus consists of a(n): • Oven with cooling fan, massive brass block and electric heater • sample devices: thermocouple, three-pole metal resistor and thermistor • Control system sensor • Control unit that provides the heating current • Digital temperature controller • Connector to the three sample devices
