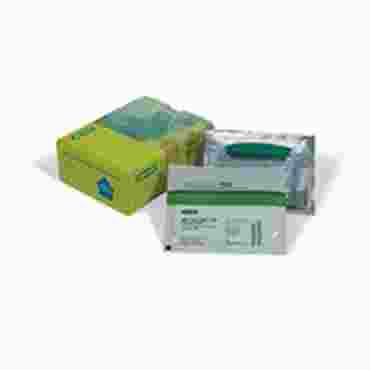

Bio-Rad 4-20% Mini-PROTEAN TGX Precast Gel, 15-Well

Item #: FB2489

Price: $126.55

Ships directly from the manufacturer.

Ready Gel polyacrylamide precast gels are designed to fit the Mini-PROTEAN Tetra cell and are ready to run. They are available in a wide selection of formulations.

See more product details

Options:

This item can only be shipped to schools, museums and science centers

Other Options

Item# FB2490 FB2482 FB2483 FB2486 FB2484 FB2485 FB2480 FB2481 FB2487 FB2488 FB2489 FB2364 FB2491
Type 5% Mini-PROTEAN® TBE 10% Mini-PROTEAN TGX 10% Mini-PROTEAN TGX 12% Mini-PROTEAN TGX 12% Mini-PROTEAN TGX 12% Mini-PROTEAN TGX 7.5% Mini-PROTEAN® TGX™ 7.5% Mini-PROTEAN® TGX™ 4-15% Mini-PROTEAN TGX 4-15% Mini-PROTEAN TGX 4-20% Mini-PROTEAN TGX 4-20% Mini-PROTEAN TGX 4–20% Mini-PROTEAN® TGX Stain-Free™
# of Wells 10 10 15 15 10 12 10 15 10 15 15 10 10
Price $29.72 $131.93 $131.93 $126.55 $131.93 $126.55 $126.55 $131.93 $131.93 $131.93 $126.55 $131.93 $145.92
Enter number of items

Product Details

Mini-PROTEAN® TGX™ Precast Polyacrylamide Gels

The long shelf life TGX™ precast gels are a part of an innovative gel system designed to provide Laemmli-like separation patterns using a standard Tris/glycine running buffer system. TGX™ precast gels are compatible with the Mini-PROTEAN® electrophoresis cells.

  • Features and Benefits

    • Can be used for denaturing electrophoresis with standard running buffer containing SDS
    • Laemmli-like separation in the presence of SDS
    • Run time as short as 15 min
    • Proteins retain native conformation and activity in the absence SDS
    • 12 month shelf life
    • Individually packaged



Specifications

Use these Mini-PROTEAN TGX Precast Protein Gels for separation of polypeptides from ~2–400 kD. Long-life TGX (Tris-Glycine eXtended) Gels have a novel formulation and can be used for both standard denaturing protein separations as well as native electrophoresis. Package of 10.

  • Well Number (Vol): 15 (15 µl)
  • Gel percentage: 4–20%
  • Comb: 15-well
  • Sample volume, µl: 15
  • Shelf life, months*: 12
  • Gel storage conditions: Store flat at 2–8°C; do not freeze
  • Recommended sample buffer (Laemmli, dilute 1:1 with sample): 62.5 mM Tris-HCl, pH 6.8, 2% SDS, 25% glycerol, 0.01% bromophenol blue
  • Recommended running buffer (Tris/glycine/SDS): 25 mM Tris, 192 mM glycine, 0.1% SDS, pH 8.3
  • Gel dimensions (W x L x thickness), cm: 8.6 x 6.7 x 0.1
  • Cassette dimensions (W x L x thickness), cm: 10 x 8 x 0.46
  • Cassette material: Styrene copolymer
  • Comb material: Polycarbonate
* From date of manufacture.

Bio-Rad Item No: 4561096EDU
