Digital zoom microscope with built-in 5MP camera and 9" LCD monitor for live viewing, image capture, and on-screen measurements. Ideal for classrooms and industrial applications.

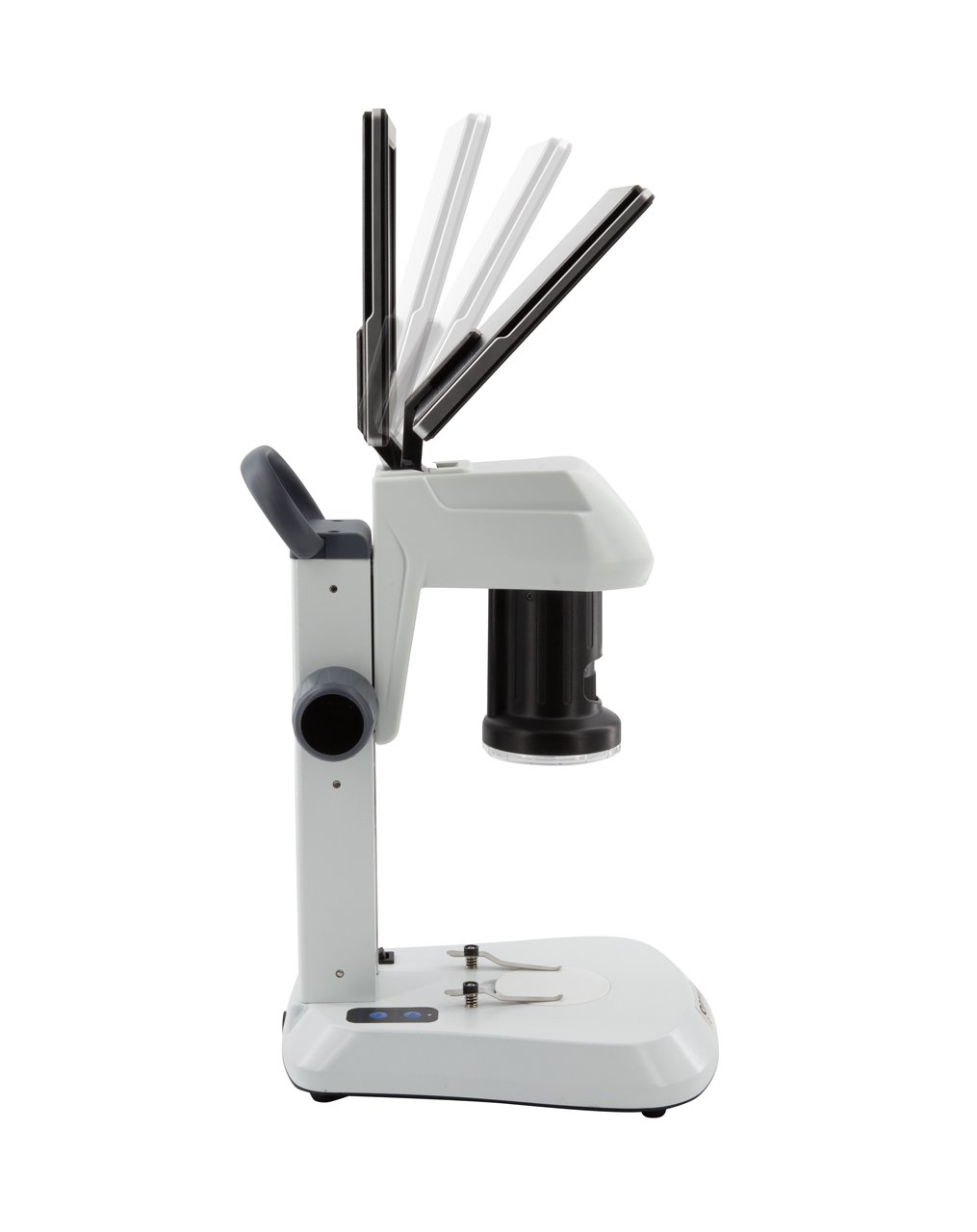

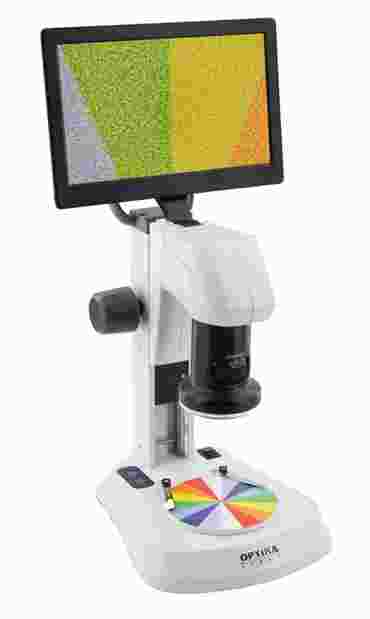

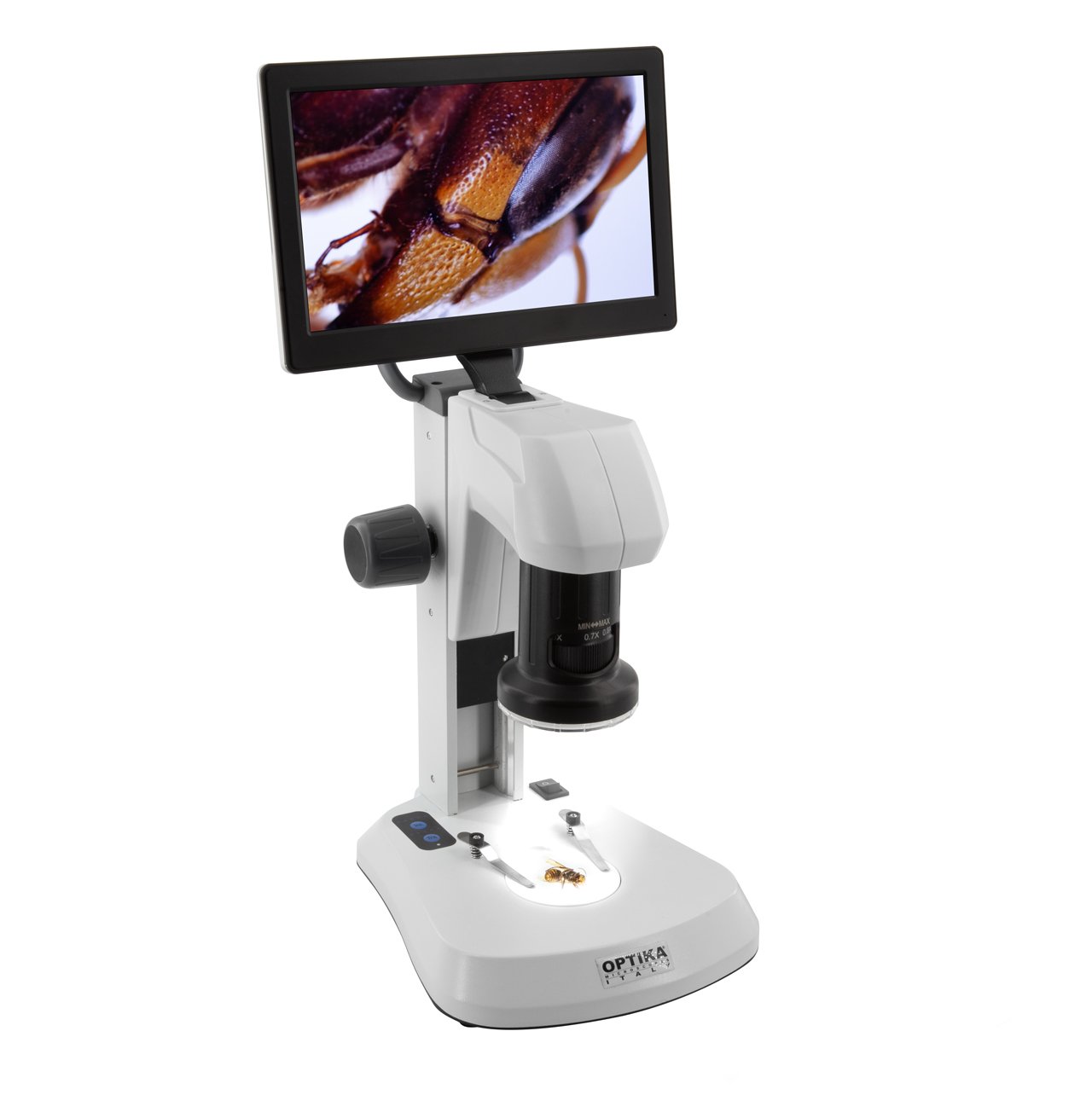

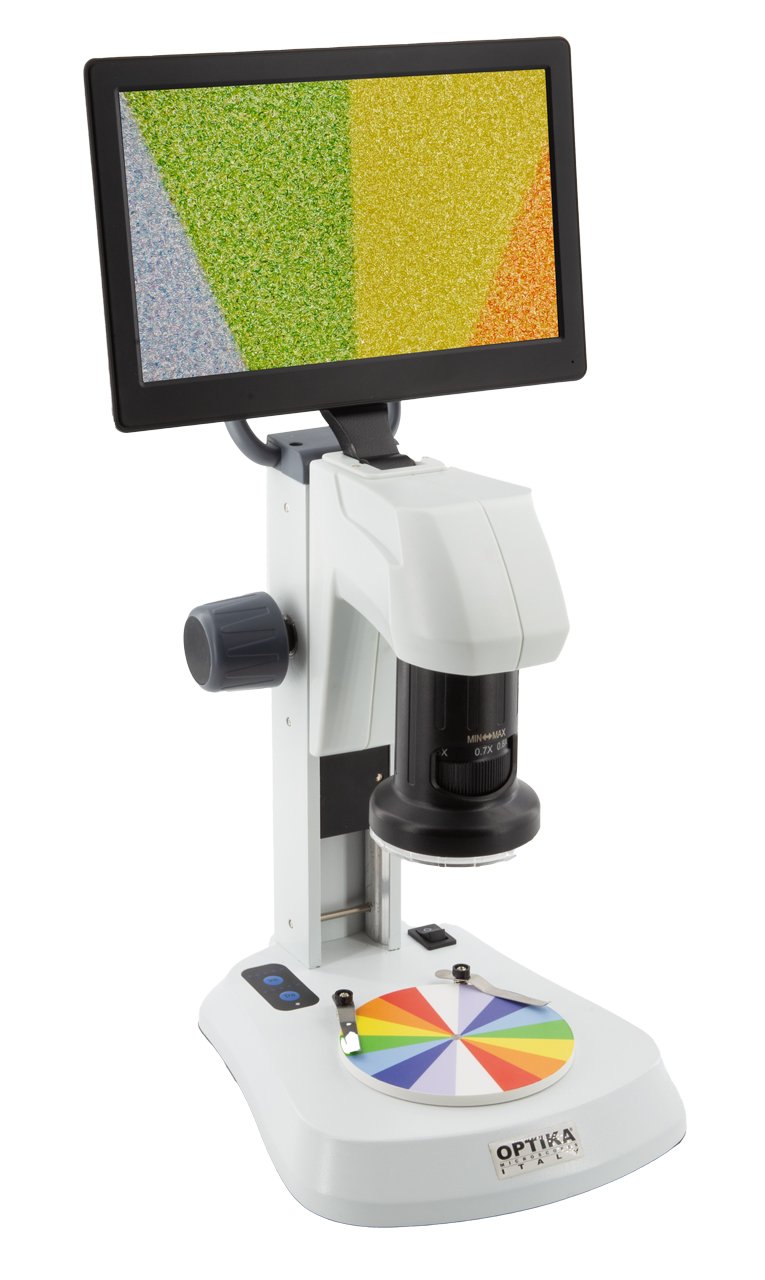

The Optika SFX-85V Digital Zoom Microscope is a self-contained imaging system that combines precision optics with powerful digital functionality. Featuring a 0.7×–4.5× optical zoom and 8×–54× display magnification, it delivers sharp, real-time visuals on its integrated 9" LCD screen. The built-in 5MP CMOS camera enables high-resolution image capture and video recording directly to the included SD card—no external PC required. Dual LED illumination (incident and transmitted) provides consistent lighting for a range of specimen types, and touch control allows easy brightness adjustment. With a 100 mm working distance, rack-and-pinion focusing, and ergonomic design, this microscope is ideal for education, inspection, and routine lab tasks. The system includes an intuitive on-screen interface, USB mouse control, and software tools for measurement, annotation, and image enhancement.
Specifications
Zoom range: 0.7X–4.5X, Objective lenses: 1 (1X); Total magnification: 8X, 54X; Stage type: Stage clips; Nosepiece type: Simple, 1–2 fixed; Focus type: Coarse; Power source: Corded; Digital: Yes; Software included: Yes; Built-in camera: Yes; Warranty: 5 years optical, 1 year electrical; Achromatic objectives: Yes; Dust cover included: Yes; LED placement: Both; Observation tube: Fixed; Rheostat control: Yes; Stage size: 183×205 mm; Stage up to thickness: 100 mm; Working distance: 100 mm
