Flinn Purgit™ Exhaust System

Flinn Purgit™ Exhaust System
exhaust, exhaustion
Flinn Purgit™ Exhaust System
exhaust, exhaustion

Item #: AP1688

Price: $768.45

When your chemical storeroom cries out, “Ventilate me!” the Flinn Purgit™ Exhaust Fan is your best choice regardless of the physical size of your chemical stores area.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

When Your Chemical Storeroom Cries Out “Ventilate Me!”

Do you notice an offensive odor when entering your chemical storeroom? Your storeroom may be crying out for help. Flinn Scientific recommends you ventilate your chemical storeroom a minimum of four (4) air changes per hour. Regardless of the physical size of your chemical stores area, the Flinn Purgit™ Exhaust Fan is your best choice.

• Provides four air exchanges per hour
• Variable speed control
• Corrosion-resistant aluminum

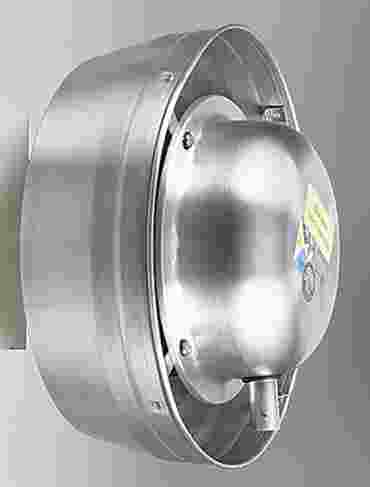

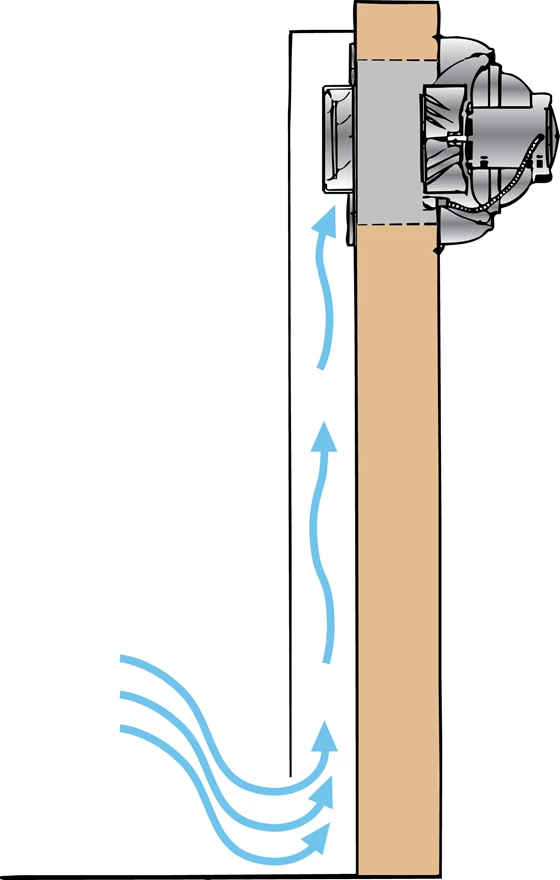

The Purgit™ Exhaust Fan mounts on the exterior wall of your chemical storeroom. A 10½" square opening is required. The opening may be through an existing window or through an exterior wall. The variable speed control on the 1550 rpm exhaust fan motor allows you to adjust the speed of the fan to achieve the proper ventilation you need in your chemical stores area. Exhaust fan components are corrosion-resistant aluminum. Safety guards prevent accidental access to moving fan blades.

The Flinn Purgit™ Exhaust Fan includes the exhaust motor/blower set, external protective cover, internal damper and a variable speed control. 10 amp, 115 volt, 60 Hz electrical service is required. Complete instructions for installation are provided. Galvanized sheet metal duct draws air from floor. You provide the duct and installation.


Specifications

Motor Horsepower: 1/13
Motor RPM: 1600
Weight: 32 pounds
Mounting Opening: 10½" Square
Free Air Capacity: 743 ft³/minute
Dimensions: 6'–8' high, 12'' wide, 8'' deep
Back draft damper and speed control included.
Motor is self-lubricating, but not explosion-proof.
