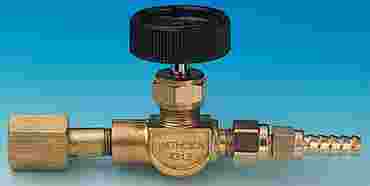

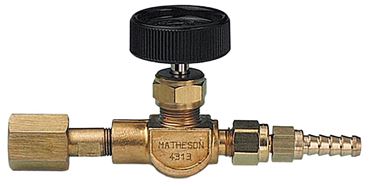

This brass lecture bottle control valve provides an economical way to dispense gas from a lecture bottle. It connects directly to the bottle and delivers coarse manual flow control through a simple, durable valve.
This brass lecture bottle control valve is the most economical and straightforward solution for dispensing gas from a lecture bottle. The single-stage control valve connects directly to the lecture bottle inlet and delivers coarse flow control through a reliable manually operated valve. Ideal for filling balloons or attaching tubing to the brass outlet stem, this valve is compatible with nonrefillable lecture bottles and is commonly used for propane and similar noncorrosive gases. Designed for CGA170 inlet connection with left-hand (reverse) threads, the valve supports up to 3000 psig maximum inlet pressure and is fully compatible with Flinn lecture bottle numbers LB1005, LB1010, LB1015, LB1020, LB1025, and LB1030. Left-hand threads.
Specifications
Brass construction, single-stage manual valve, CGA170 inlet, left-hand threads, coarse gas flow control, max inlet pressure 3000 psig, compatible with LB1005–LB1030 lecture bottles, propane-compatible.
