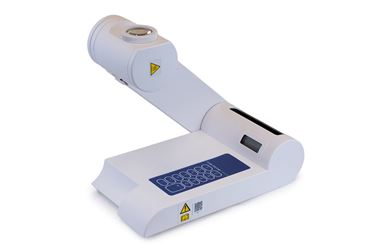

The melting point apparatus provides a safe, accurate way to determine melting points without the hazards of oil baths or mercury thermometers. It features digital temperature control, accepts three capillary tubes, and comes with a pack of 100 tubes.
Avoid the hazards associated with traditional oil baths or mercury thermometers—use the melting point apparatus to easily and accurately determine melting points. This unit provides precise melting points up to 400 °C with a 0.1 °C temperature resolution and can accept up to three samples simultaneously using glass capillary tubes up to 2 mm diameter. A simple key press allows you to record up to six readings without written notes. The oven automatically returns to its ramp-start setting for consistent testing conditions. An 8× magnification eyepiece and built-in illumination provide a clear view of the heating block. Safe and quick to use, the unit heats up or cools down within minutes. Includes 100 capillary tubes, digital 7" touchscreen controller, over-temperature protection, and 115 V operation.
Specifications
Three-sample capacity, accepts 2 mm glass capillary tubes, digital 7" touchscreen controller, 0.1–20 °C/min heat-up rate, max temp 400 °C, 0.1 °C resolution, ±0.5 °C accuracy at 20 °C (±1 °C at 350 °C), stores 300 melt files, over-temperature protection, 20.3 W × 35.6 D × 7.6 H cm unit size, 45 W, includes 100 capillary tubes, 115 V.
