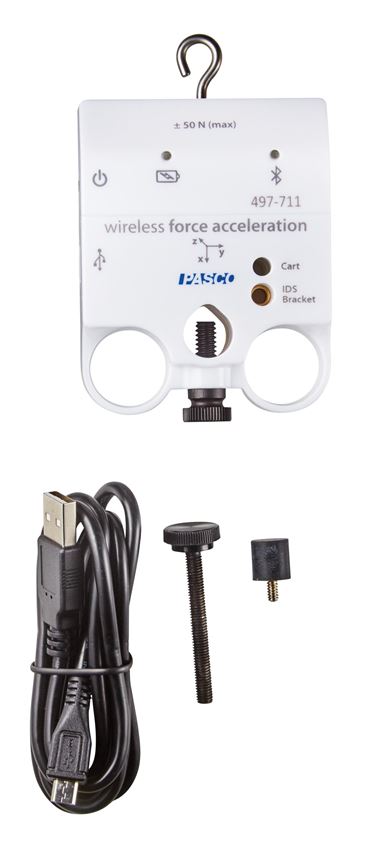

PASCO Wireless Force Acceleration Sensor

Item #: TC1664

Price: $136.00

In Stock.

The Wireless Force Acceleration Sensor simultaneously measures force, acceleration, and rotational velocity without the inconvenience of wires.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

Capable of simultaneously measuring force, acceleration, and rotational velocity, this sensor is ideal for experiments involving rotating platforms, moving carts, spring oscillations, collisions, and impulse. The wireless design offers improved measurement accuracy by eliminating cords that affect data collection. Students can use the finger-holes for handheld applications, or mount it onto a cart or rod for more complex experiments.

• Bluetooth Low Energy and simple, one touch in-app pairing

• Long-lasting rechargeable battery

• Zeroing is completed within the software for accurate taring

• Logging mode stores data for force, acceleration, and rotation directly on the sensor for long-term experiments

• Simultaneously measures force and acceleration

• Built-in 3-axis acceleration sensor measures acceleration in x, y, and z-axes, and calculates resultant acceleration

• Built-in gyroscope measures rotation about x, y, and z-axes

Included: Hook attachment (1); Rubber bumper attachment (1); Cart/bracket thumbscrew (1); USB cable (1)


Force Sensor
  • Range: ±50 N
  • Resolution: 0.03 N
  • Accuracy: ±0.1 N
  • Maximum Sample Rate: 1000 Hz
  • Range: ±16 g
  • Accuracy: ±0.2 m/s² (at 9.8 m/s²)
  • Maximum Sample Rate: 500 Hz
Gyro Sensor
  • Range: ±2000 °/s
  • Maximum Sample Rate: 500 Hz
Connectivity USB and Bluetooth 5.2
Logging Yes
Battery Type Rechargeable LiPo
