Price: $115.00
In Stock.
This item can only be shipped to schools, museums and science centers

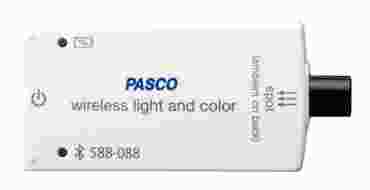

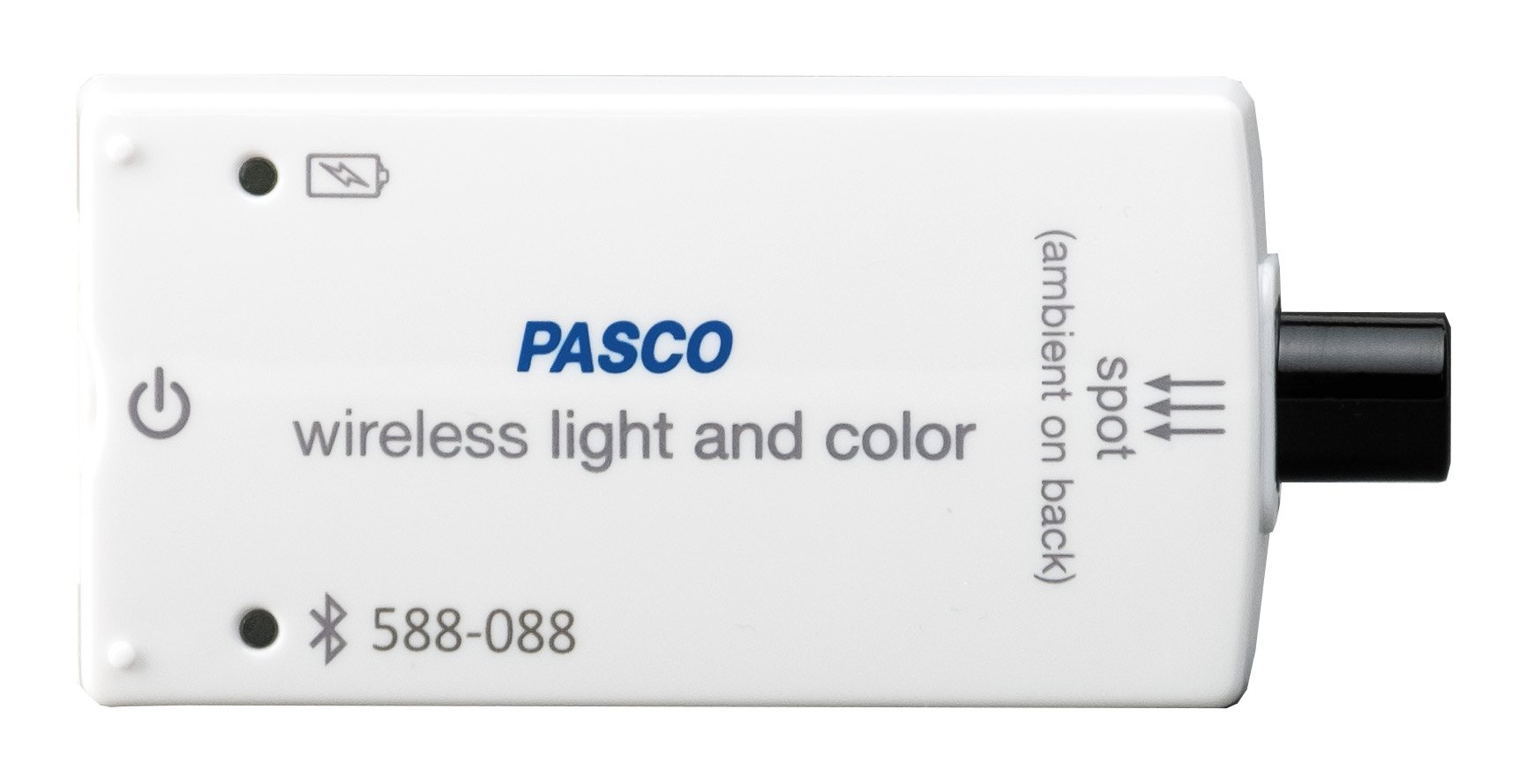

The Wireless Light and Color Sensor features two separate apertures: One measures ambient light from the side of the box, and the other measures percent color of directional light at the end of the box.
Features
The ambient sensor measures:
- Lux: light energy from a point in a direction (per steradian, a solid angle) per second
- Illuminance: Light intensity per area, or brightness in our eyes’ perceivable range
- Irradiance: Power of the light per area. (Depends on wavelength as UV light has more energy than infrared)
- PAR (Photosynthetically Active Radiation): amount of light in the visible range 400 -700 nm available to stimulate plant growth
- UV Index: 1 to 12 scale for the time light takes to cause skin damage. (Larger numbers cause burns faster.)
The directional spot sensor measures:
- RGB: Light levels as a percent of the total of all colors measured
- White: Total 'white' light intensity as a function of the sensor (on a scale of 65,536)
| Spectral Response | 340 nm to 1150 nm |
| Illuminance Range | 0 to 131,000 lux |
| Irradiance Range | 0 to 1362 W/m2 |
| PAR Range | 0 to 2400 umol/m2/s |
| UV Index Range | 0 to 12 (typical in daylight) |
| RGB Range | 0 to 100% of combined colored light |
| Maximum Sample Rate | 2 Hz (ambient); 20 Hz (spot) |
| Connectivity | Bluetooth 5.2 |
| Datalogging | Yes |
| Stored Data Points (Logging) 1 | >15,000 |
| Battery - Connected (Data Collection Mode) 2 | >210 hr (2-3 years of normal classroom use) |
| Battery - Logging (Data Logging Mode) 3 | 11 days |
| Battery Type | Coin Cell |
1 Minimum # of data points with all measurements enabled, actual results depend on enabled measurements.
2 Continuous use in a connected state until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
3 Logging until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
* Normal classroom use is the sensor in active use for 20min/lab for 120 lab periods/yr.
PASCO Item No.: PS-3248
