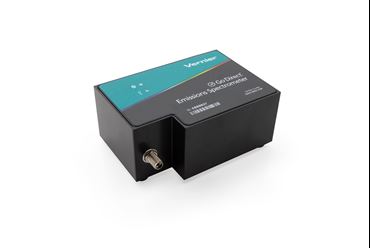

Vernier Go Direct® Emissions Spectrometer

Vernier Go Direct® Emissions Spectrometer
Vernier Go Direct® Emissions Spectrometer
Item #: TC1693

Price: $1,049.00

This item is temporarily out of stock. The expected available to ship date is 03/13/2026

The Vernier Go Direct® Emissions Spectrometer allows students to measure and analyze emission spectra from light-emitting sources such as spectrum tubes, light bulbs, and sunlight.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

The Vernier Go Direct® Emissions Spectrometer is designed for instructional physics and chemistry laboratories focused on emission spectroscopy and light analysis. The instrument measures emission spectra across a wavelength range of 350–900 nm and connects to computers, tablets, or LabQuest® devices via Bluetooth® wireless technology or USB. Using a linear CCD detector and a 1000 lines/mm grating, the spectrometer delivers reliable spectral resolution for observing discrete emission lines and comparing light sources. Students can display and analyze spectral data using Vernier Spectral Analysis®, Logger Pro®, or LabQuest® software. The spectrometer is suitable for analyzing spectrum tubes, light bulbs, LEDs, and large light sources such as the sun, with optional optical fiber support for focused measurements. Compact dimensions and USB-powered operation make it well suited for classroom benches, demonstrations, and student investigations.

Specifications

Emission spectroscopy measurements, wavelength range 350–900 nm, wavelength accuracy ±2 nm, wavelength interval 1 nm, wavelength precision ±0.5 nm, optical resolution 3.0 nm, spectral slit width 25 µm, 1000 lines/mm grating, linear CCD detector, stray light <0.05%, scan time ~2 seconds, bluetooth® and usb connectivity, usb-powered operation, dimensions 10.1 × 7.0 × 4.5 cm, compatible with vernier spectral analysis®, logger pro®, and labquest® platforms, 5-year limited warranty.
