Item #: TC1704

Price: $299.00

In Stock.

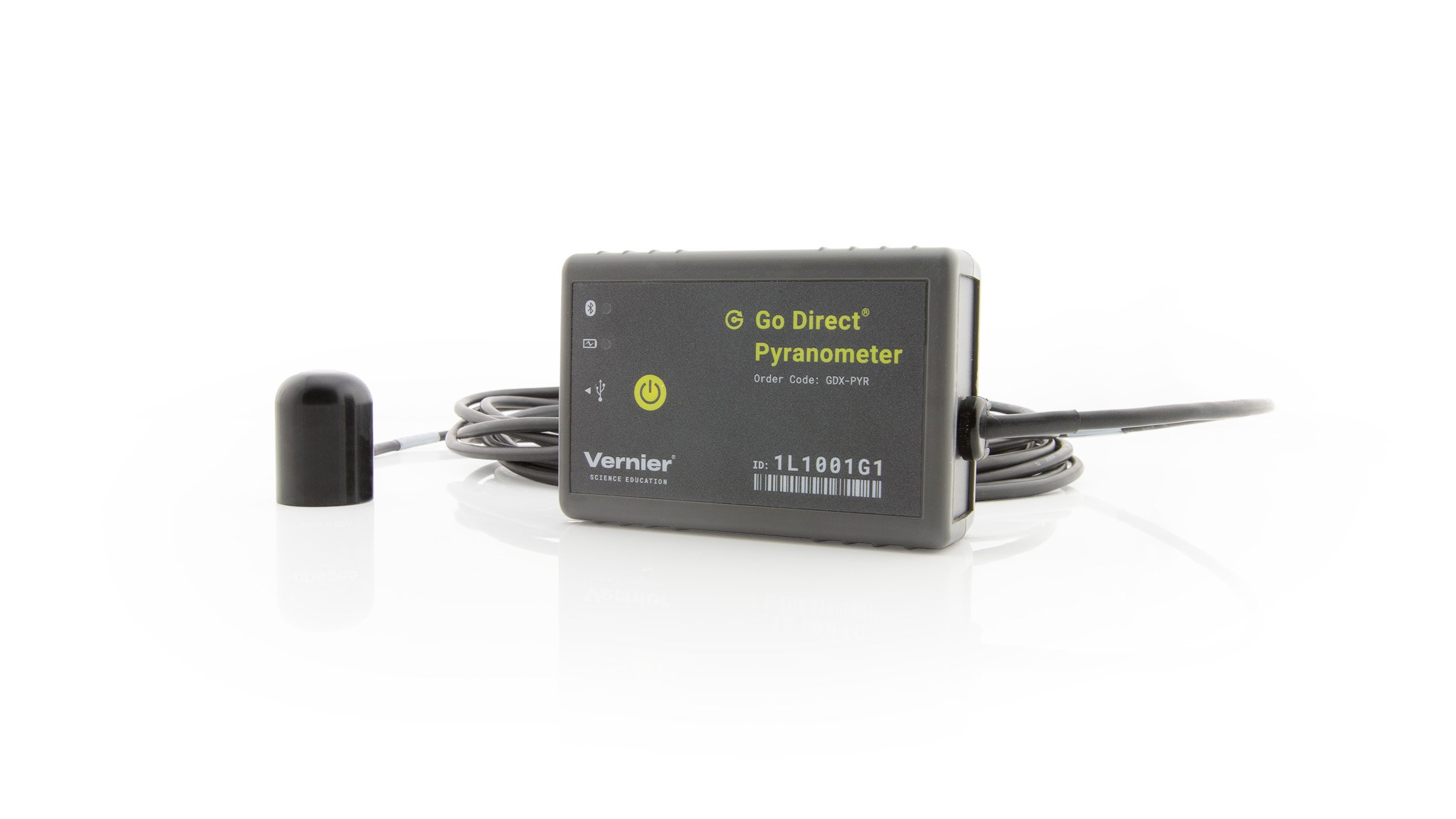

The Go Direct Pyranometer measures the power of electromagnetic radiation. It is sensitive to near infrared, visible, and UV radiation, where 90% of solar energy is concentrated. It reads in watts per square meter, so it is great for experiments with solar cells and calculating their efficiency. It has a weatherproof sensor head with a dome-shape top to allow it to handle a wide range of sun angles.

See more product details

This item can only be shipped to schools, museums and science centers

Qty:


Product Details

The Go Direct Pyranometer measures the power of electromagnetic radiation. It is sensitive to near infrared, visible, and UV radiation, where 90% of solar energy is concentrated. It reads in watts per square meter, so it is great for experiments with solar cells and calculating their efficiency.

It has a weatherproof sensor head with a dome-shape top to allow it to handle a wide range of sun angles.

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from the Vernier Graphical Analysis® app, as well as LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Specifications

Irradiance Range: 0 to 1100 watts/m2 (in full sun)
Absolute Accuracy: ±5%
Repeatability: ±1%
Long-Term Drift: Less than 3% per year
Cosine Response:
45° zenith angle: 1%
75° zenith angle: ±5%
Wavelength range: 360 nm to 1120 nm
Typical Resolution: 0.3 Watts/m2
Sensor dimensions:
Diameter: 2.4 cm
Height: 3.3 cm
Cable Length: 5 m
Materials: Anodized aluminum with cast acrylic lens
