Item #: AP1049

Price: $9,500.00

Ships directly from the manufacturer.

Barnstead water stills are electrically heated stills that provide high-quality water. The stills are easy to use and maintain, rugged and long-lasting. Both classic and portable stills are available.

See more product details

Must be shipped by motor truck freight

This item can only be shipped to schools, museums and science centers

Other Options

Item# AP1049 AP1050
Type Classic Portable
Amp Draw 17 amps 12 amps
Gallons/Hour 2 gal/hr 4 gal/hr
Price $9,500.00 $3,725.00
Enter number of items

Product Details

Electrically heated stills provide high-quality water. Ideal for educational science laboratories requiring a rugged, long-lasting still. Barnstead Classic Stills effectively remove inorganic solids, organics, bacteria, and pyrogens. The stills are constructed of copper and bronze with a coating of pure tin. The inert nature of tin prevents any leaching of contaminants into the water.

• Double-walled boiler and preheating of feed water conserves electricity.
• Vented condenser allows for stripping of gaseous impurities.
• Unique de-concentrator removes scale forming impurities from the boiler.
• Unique Thermo Scientific Q-Baffle ensures high-quality pyrogen-free water by stripping contaminant laden water droplets from steam.
• Space-saving horizontal condenser
• Metal construction withstands years of use.
• Units are easily floor and bench mountable, depending on model.
• Inert pure tin pathways assure product water quality.
• Controller unit can be wall mounted.

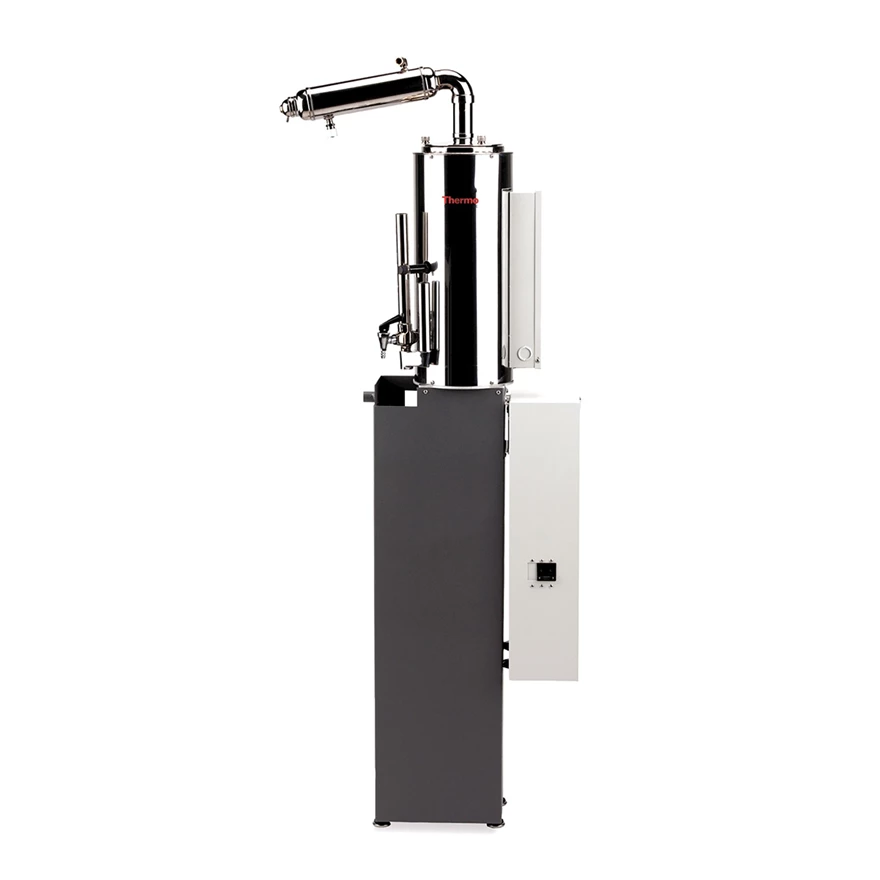

Floor Model Electric Stills (Flinn Catalog No. AP1049)
• Come standard with floor mounting stand
• New over temperature protection system improves safety
• New plug-and-play hardware allows for easier installation
• Capacities from 1 to 10 gal/hr
• Low water cut-off protects heating elements when water supply is interrupted
• Optional fully automatic controls allow for unattended operation; stops still when storage reservoir is full, starts still when water level falls below preset level. Drains still boiler at selected 4-hour intervals to reduce scale formation.
• Flow rate: 2 gal/hr
• Cooling flow rate: 16 gal/hr
• 208 V, 50/60 Hz and 17 A (UL, cUL)
• 68" H × 23" W × 11" L
