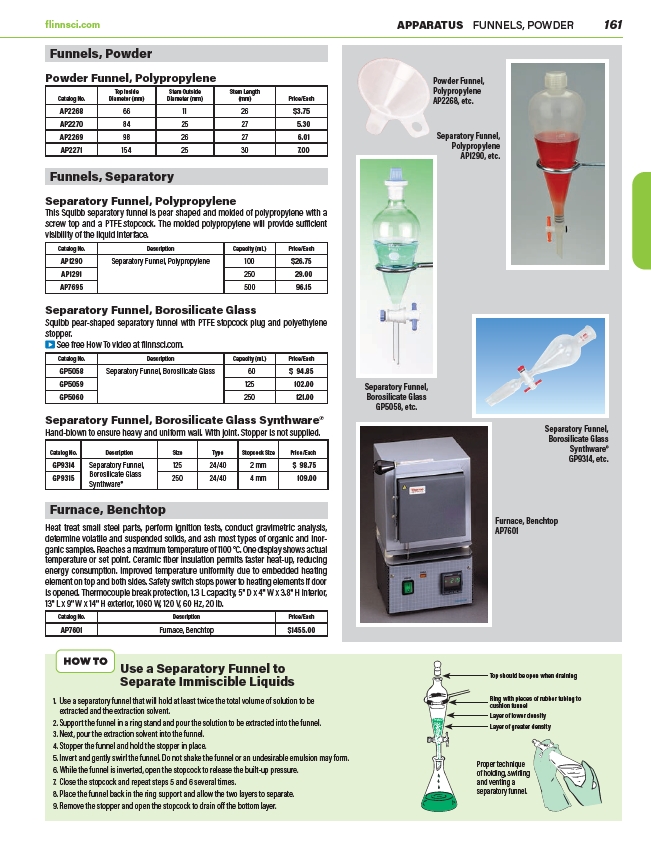

flinnsci.com 161
Funnels, Separatory
Separatory Funnel, Polypropylene
This Squibb separatory funnel is pear shaped and molded of polypropylene with a
screw top and a PTFE stopcock. The molded polypropylene will provide sufficient
visibility of the liquid interface.
Catalog No. Description Capacity (mL) Price/Each
AP1290 Separatory Funnel, Polypropylene 100 $26.75
AP1291 250 29.00
AP7695 500 96.15
Furnace, Benchtop
Heat treat small steel parts, perform ignition tests, conduct gravimetric analysis,
determine volatile and suspended solids, and ash most types of organic and inorganic
samples. Reaches a maximum temperature of 1100 °C. One display shows actual
temperature or set point. Ceramic fiber insulation permits faster heat-up, reducing
energy consumption. Improved temperature uniformity due to embedded heating
element on top and both sides. Safety switch stops power to heating elements if door
is opened. Thermocouple break protection, 1.3 L capacity, 5" D x 4" W x 3.8" H interior,
13" L x 9" W x 14" H exterior, 1060 W, 120 V, 60 Hz, 20 lb.
Catalog No. Description Price/Each
AP7601 Furnace, Benchtop $1455.00
APPARATUS FUNNELS, POWDER
Furnace, Benchtop
AP7601
Separatory Funnel, Borosilicate Glass Synthware®
Hand-blown to ensure heavy and uniform wall. With joint. Stopper is not supplied.
Catalog No. Description Size Type Stopcock Size Price/Each
GP9314 Separatory Funnel,
Borosilicate Glass
Synthware®
125 24/40 2 mm $ 98.75
GP9315 250 24/40 4 mm 109.00
Separatory Funnel,
Borosilicate Glass
Synthware®
GP9314, etc.
Separatory Funnel, Borosilicate Glass
Squibb pear-shaped separatory funnel with PTFE stopcock plug and polyethylene
stopper.
See free How To video at flinnsci.com.
Catalog No. Description Capacity (mL) Price/Each
GP5058 Separatory Funnel, Borosilicate Glass 60 $ 94.85
GP5059 125 102.00
GP5060 250 121.00
Separatory Funnel,
Polypropylene
AP1290, etc.
Use a Separatory Funnel to
Separate Immiscible Liquids
1. Use a separatory funnel that will hold at least twice the total volume of solution to be
extracted and the extraction solvent.
2. Support the funnel in a ring stand and pour the solution to be extracted into the funnel.
3. Next, pour the extraction solvent into the funnel.
4. Stopper the funnel and hold the stopper in place.
5. Invert and gently swirl the funnel. Do not shake the funnel or an undesirable emulsion may form.
6. While the funnel is inverted, open the stopcock to release the built-up pressure.
7. Close the stopcock and repeat steps 5 and 6 several times.
8. Place the funnel back in the ring support and allow the two layers to separate.
9. Remove the stopper and open the stopcock to drain off the bottom layer.
Top should be open when draining
Ring with pieces of rubber tubing to
cushion funnel
Layer of lower density
Layer of greater density
Proper technique
of holding, swirling
and venting a
separatory funnel.
Separatory Funnel,
Borosilicate Glass
GP5058, etc.
Funnels, Powder
Powder Funnel, Polypropylene
Catalog No.
Top Inside
Diameter (mm)
Stem Outside
Diameter (mm)
Stem Length
(mm) Price/Each
AP2268 66 11 26 $3.75
AP2270 84 25 27 5.30
AP2269 98 26 27 6.01
AP2271 154 25 30 7.00
Powder Funnel,
Polypropylene
AP2268, etc.
